Overview
The CCP-6U series high voltage power supply expands and upgrades the output capacity on the basis of the CCP-4U high voltage capacitor charging power supply. It adopts a 19-inch 6U standard rack-mount chassis, the output power can reach 6KW, and the output voltage level is 1KV / 2KV / 3KV / 4KV / 5KV / 6KV / 8KV / 10KV / 12KV / 15KV / 20KV / 30KV / 40KV / 50KV / 60KV / 70KV / 80KV / 100KV, the charging high-voltage power supply expands the output voltage and power range on the basis of maintaining high efficiency, high output response speed and faster protection start self-recovery features.
The output voltage and current of the power supply can be controlled and read through the front control panel. And, this series of power supplies are also equipped with a DB50 interface as standard. Customers can edit the control software according to our communication protocol or apply 0 - 10V signal and dry contact signal on the interface according to our interface definition to achieve control and monitoring of the power supply, such as high voltage start/stop, output settings and readings.
With complete protection functions, the high voltage power supplies can deal with overvoltage, overcurrent, load discharge and other situations.
Features
Can be used as a HV DC power supply or as HV capacitor charging power supply.
Output voltage adjustable from 0 to 100%
Output power: Average charging @ 3KJ/S and the peak charging power can reach 6KW.
Charging in constant current mode and switch to constant current mode till fully charged.
Unique double isolated system, strong anti-interference ability.
Forced air cooling, very rugged design.
Applications
Ion beam implantation
Semiconductor process
Electron beam welding
Capacitor charging
High-power RF transmitter
Electrostatic precipitator
X-ray system
Remote functions
0~10V analog signal control (DB50 interface <6U>)
RS communication interface (RS485 communication port)
Specifications | |||
Input | Voltage | Three-phase 380Vac (input tolerance: 10%) | |
Frequency | 50Hz/60Hz | ||
Connection | Input line provided by iDealTek. (1.5 meters) | ||
Output | Rated power | 3KW ~ 6KW (Max.) available ** | |
Output voltage adjusting range | 1KV / 2KV / 3KV / 4KV / 5KV / 6KV / 8KV / 10KV / 12KV / 15KV / 20KV / 30KV / 40KV / 50KV / 60KV / 70KV / 80KV / 100KV available ** (For other output voltages, please contact us for details) | ||
Output current adjusting range | 0A ~ ****mA | ||
Output polarity | Positive or Negative (both available) Client must choose one output polarity before ordering. | ||
Line regulation | ≤0.1% for ±10% change in input voltage. | ||
Load regulation | ≤0.1% for no load to full load at output. | ||
Ripple (Vr.m.s.) | ≤0.1% @ rated output. | ||
Output connection | Detachable shielded high-voltage cable provided by IdealTek. (3 meters) | ||
Efficiency | ≥90% | ||
Setting & Display | Output control mode | Local | 10-turn potentiometer on front panel. |
Remote | DB50 analog port & RS485 communication port. | ||
Display mode | Display mode | 41/2 LED digital display | |
Display resolution | |||
Protection & Monitoring functions | Load discharging protection | When the load has discharging due to insufficient safety distance between load and ground, the power supply shutdown the high voltage output, and then restarts, so cycle like this till the discharging fault is eliminated. | |
Short circuit protection | When a short circuit occurs between the load and the ground, the power supply works in constant current mode, the current is limited to the maximum value, and the voltage drops to 0 to protect the internal inverter from damage. | ||
Over current protection | When the users' load exceeds the rated load and cause over-loading, the power supply works in constant current mode, the power supply output current does not change, and output voltage decreases. | ||
Noise | ≤65dB | ||
Protection degree | IP20 | ||
Cooling method | Forced air cooling (Front inlet, rear outlet) | ||
Working environment conditions | Ambient temperature | 0℃～40℃ | |
Humidity | 10%～90% (non-condensing) | ||
Height | ≤2000m | ||
Storage environment conditions | Ambient temperature | -20℃～60℃ | |
Humidity | 10%～90%(non-condensing) | ||
Height | ≤2000m | ||
Size (W*H*D) (mm) | 483*266*573 （19” sub-rack 6U chassis） | ||
Weight | 45KG (1KV ~ 10KV) 55KG (20KV ~ 100KV) | ||
Note: every power supply has 48 hours full load burn-in test @ 40℃ | |||

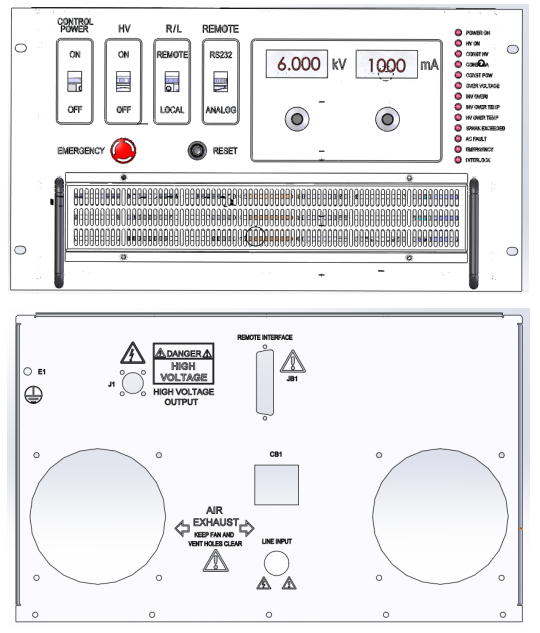

Power Supply Front and Rear Panels Description

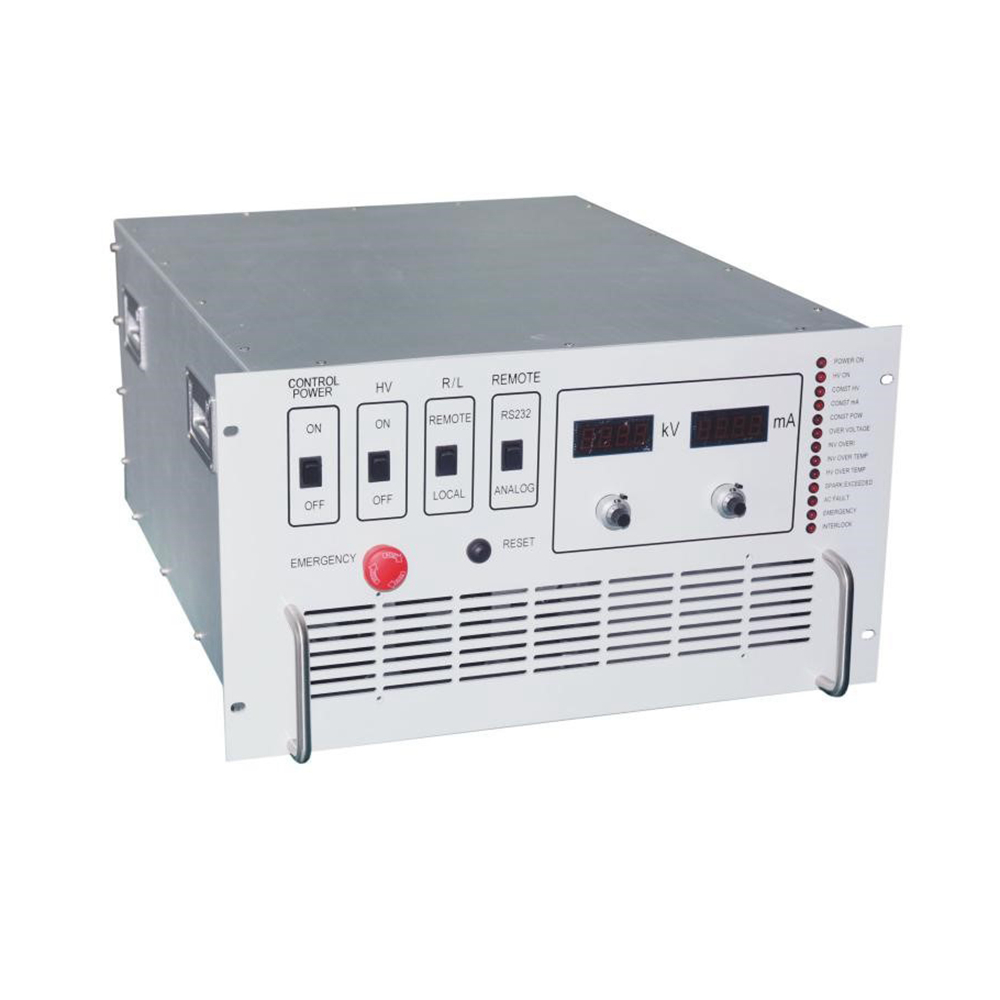

Front panel description
No. | Description |
1 | Power Switch (POWER) |
2 | HV ON / OFF Switch (HV) |
3 | Local / Remote Switch (LOCAL / REMOTE) |
4 | Analog / RS communication Switch |
5 | HV adjusting knob |
6 | Current adjusting knob |
7 | HV output display |
8 | Output current display |
9 | Emergency Button |
10 | Reset switch |
Front Panel Indicator Lights Description
Indicator lights name | Description |
POWER ON | After the CONTROL POWER switch is set to the ON position, the light becomes on, indicating that the power input has been connected and the power supply is normal. |
HV ON | After the HV switch is set to the ON position, the light becomes on, indicating that the high-voltage output of the power supply is started and the power supply is normal. |
CONST HV
| When the light is on, it indicates that the power supply is working in a constant voltage state. |
CONST mA | When the light is on, it indicates that the power supply is working in a constant current state. |
CONST POW | When the light is on, it indicates that the power supply is working in a constant power state. |
OVER VOLTAGE | When the light is on, it indicates that the power supply has a high voltage overvoltage fault. |
INV OVERI | This light is on, indicating that the power supply has an inverter overcurrent fault. |
INV OVER TEMP | This light is on, indicating that the power supply has an inverter over-temperature fault. |
HV OVER TEMP | When the light is on, it indicates that the power supply has an over-temperature fault with the high-voltage part. |
SPARK EXCEEDED | When the light is on, it indicates that the power supply has a discharge fault. |
AC FAULT | When the light is on, it indicates that there is an AC fault (overvoltage or undervoltage) fault in the power supply. |
EMERGENCY | When the light is on, it indicates that the power supply is in an emergency stop state with faults. |
INTERLOCK | When the light is on, it indicates that the power supply is in an interlocked state and the power supply is normal. |

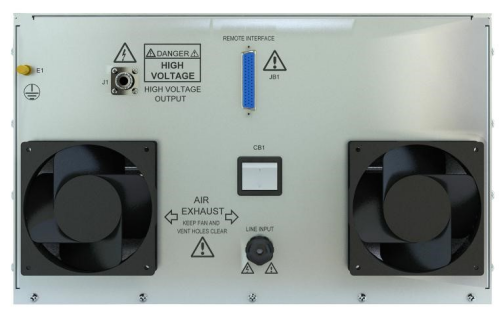

Rear panel description
Mark | Description |
E1 | Grounding bolt |
J1 | HV output interface |
JB1 | DB50 control interface |
CB1 | Main power switch |
LINE INPUT | Power Supply input interface Three – phase, four – wire (L1 è Black, L2 è Red, L3 è Grey, Null è Blue, PE è Green) |
AIR EXHAUST | Cooling fans |
Standard model list | |||||||
KV | mA | P (KW) | Model | KV | mA | P (KW) | Model |
1 | 6000 | 6 | CCP-(N/P)6kW-1kV | 15 | 400 | 6 | CCP-(N/P)6kW-15kV |
2 | 3000 | 6 | CCP-(N/P)6kW-2kV | 20 | 300 | 6 | CCP-(N/P)6kW-20kV |
3 | 2000 | 6 | CCP-(N/P)6kW-3kV | 30 | 200 | 6 | CCP-(N/P)6kW-30kV |
4 | 1500 | 6 | CCP-(N/P)6kW-4kV | 40 | 150 | 6 | CCP-(N/P)6kW-40kV |
5 | 1200 | 6 | CCP-(N/P)6kW-5kV | 50 | 120 | 6 | CCP-(N/P)6kW-50kV |
6 | 1000 | 6 | CCP-(N/P)6kW-6kV | 60 | 100 | 6 | CCP-(N/P)6kW-60kV |
8 | 750 | 6 | CCP-(N/P)6kW-8kV | 70 | 86 | 6 | CCP-(N/P)6kW-70kV |
10 | 600 | 6 | CCP-(N/P)6kW-10kV | 80 | 75 | 6 | CCP-(N/P)6kW-80kV |
12 | 500 | 6 | CCP-(N/P)6kW-12kV | 100 | 60 | 6 | CCP-(N/P)6kW-100kV |
More models are coming soon. | |||||||

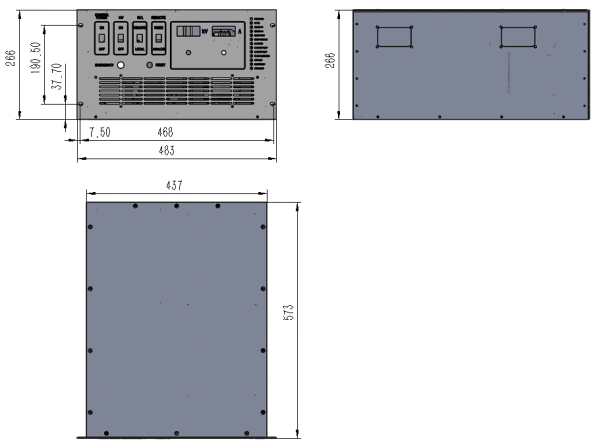

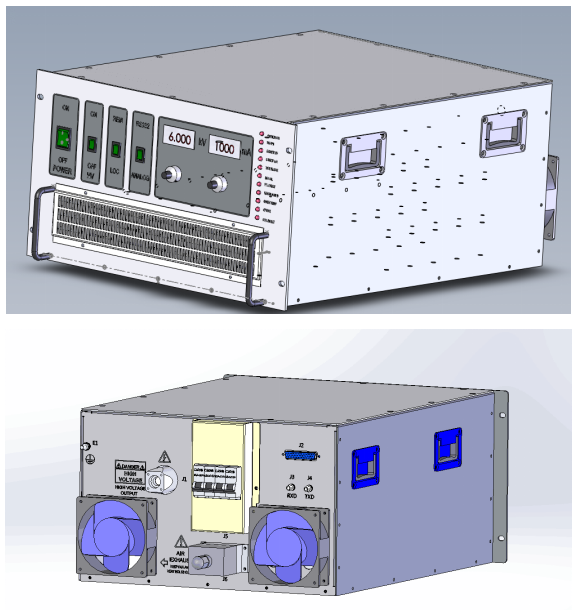

Drawings (for reference only)
6U chassis ((2KW<P≤6KW)) (RAL7035)
Safety caution
1.This power supply has HV output, only professional person could operate it.
2.Please make sure of good grounding before operation.
3.Capacitor charging power supply has low internal stored energy, please NO no-loading working.
4.Keep power supply clean and good ventilation.
5.HV input & output connectors or HV load no touch anything.

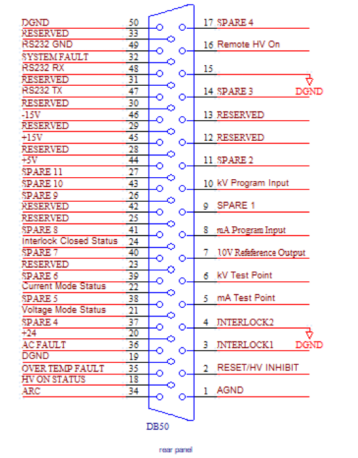

Remote DB50 port drawing and definition
HV can be enabled only when JB1 – 3 and JB1 – 4 are closed.
1 | AGND | AGND |
2 | Reset/HV Inhibit | Normally open, Low = Reset/Inhibit |
3 | External Interlock | +24Vdc @ open, <25mA @ closed |
4 | External Interlock Return | Return for External Interlock |
5 | mA Test Point | 0-10Vdc = 0-100% rated output, Zout= 1KΩ, 1% |
6 | kV Test Point | 0-10Vdc = 0-100% rated output, Zout= 1KΩ, 1% |
7 | +10Vdc Reference Output | +10Vdc @ 1mA |
8 | mA Program Input | 0-10Vdc = 0-100% rated output, Zin>10MΩ |
9 | Spare | |
10 | kV Program Input | 0-10Vdc = 0-100% rated output, Zin>10MΩ |
11 | Spare | |
12 | Reserved | |
13 | Reserved | |
14 | Spare | |
15 | Power Supply Common | Power Supply Ground |
16 | Remote HV On | Open circuit is +24Vdc Closed to 2A peak, 1Adc Connect to pin 15 at any time to turn on the high voltage. |
17 | Spare | |
18 | HV On Indicator | +24Vdc @ 25mA = HV ON |
19 | Power Supply Common | Supply Ground |
20 | +24Vdc Output | +24Vdc @ 100mA, maximum |
21 | Voltage Mode Status | Open Collector, Low = Active |
22 | Current Mode Status | Open Collector, Low = Active |
23 | Reserved | |
24 | Interlock Closed Status | Open Collector, Low = Active |
25 | Reserved | |
26 | Spare | |
27 | Spare | |
28 | Reserved | |
29 | Reserved | |
30 | Reserved | |
31 | Reserved | |
32 | Reserved | |
33 | Reserved | |
34 | Arc | Open Collector, Low = Active |
35 | Over Temp Fault | Open Collector, Low = Active |
36 | AC Fault | Open Collector, Low = Active |
37 | Spare | |
38 | Spare | |
39 | Spare | |
40 | Spare | |
41 | Spare | |
42 | Spare | |
43 | Spare | |
44 | +5Vdc Output | +5Vdc @ 100mA, maximum |
45 | +15Vdc Output | +15Vdc @ 100mA, maximum |
46 | -15Vdc Output | -15Vdc @ 10mA, maximum |
47 | RS232 Tx | |
48 | RS232 Rx | |
49 | RS232 GND | |
50 | Power Supply Common | Power Supply Ground |
