Overview
CCPS-6U series high voltage power supply is an upgraded version of CCP-6U high voltage capacitor charging power supply. It uses a 19-inch 6U standard rack-mounted chassis, with an output power of up to 10KW and an output voltage level of 5KV / 10KV / 20KV / 30KV / 40KV / 50KV / 60KV, the high-voltage charging power supply has achieved a substantial increase in the charging capacity of the rack-mounted high-voltage charging power supply on the basis of maintaining high efficiency, high output response speed and faster protection and starting self-recovery.
The front panel of this series of high-voltage charging power supplies is controlled by a potentiometer with the LCD meters showing high-voltage output. This series of high-voltage charging power supplies can be equipped with RS485 interface and control software to control and monitor the operating parameters of the high-voltage power supply.
The power supply is equipped with more comprehensive protections to ensure long-term and reliable operation of the power supply at full load, such as: input phase loss, output overvoltage, overcurrent, over heat, short circuit protection, etc., and can also be equipped with a discharging circuit to deal with high-voltage charging and discharging conditions for effective protection of the high-voltage power supplies and the capacitors under test.
Features
Can be used as a HV DC power supply or as HV capacitor charging power supply.
Output voltage adjustable from 0 to 100%
Output power: Average charging @ 5KJ/S and the peak charging power can reach 12KW.
Charging in constant current mode and switch to constant current mode till fully charged.
Unique double isolated system, strong anti-interference ability.
Forced air cooling plus internal water cooling, very rugged design.
Optional functions
0~10V analog signal control (DB interface <6U>) (+AC)
RS communication interface (RS232 / RS485 optional) (+RC)
Specifications | |||
Input | Connection mode | Three-phase, four-wire (PE), TN-S supply mode | |
Voltage | 380Vac±10% | ||
Frequency | 50Hz/ 60Hz ± 10% | ||
Current | As per output power. | ||
Output | Rated power | 6KW ~ 12KW (Max.) available ** | |
Output voltage adjusting range | 5KV ~ 60KV available ** (For other output voltages, please contact us for details) | ||
Output current adjusting range | 0A ~ ****mA | ||
Output polarity | Positive or Negative (both available) Client must choose one output polarity before ordering. | ||
Working mode | Constant voltage (CV) / Constant current (CC) | ||
Accuracy (C.V.) | Line regulation | ≤0.5% FS ± 1 digit (Output voltage change rate only caused by changes of input voltage over ± 10% range of variation) | |
Load regulation | ≤1% FS ± 1 digit (Output voltage change rate only caused by full range load changes) | ||
Accuracy (C.C.) | Line regulation | ≤0.5% FS ± 1 digit (Output voltage change rate only caused by changes of input voltage over ± 10% range of variation) | |
Load regulation | ≤0.5% FS ± 1 digit (Output voltage change rate only caused by full range load changes) | ||
Temperature drift | ≤0.03% FS (Output voltage change rate every 8 hours after power on for half an hour) | ||
Ripple (p-p) | ≤0.5% FS (measured @ 80% ~ 100% rated output) | ||
Output cable | HV connector and line provided by IdealTek. | ||
Efficiency | ≥90% | ||
Setting & Display | Control mode | Local | 10-turn potentiometer on front panel. |
Remote (Optional) | RS485 communication interface. In line with MODBUS-RTU standard. The user can control and monitor the power supply via RS485 connection with computer, E.g: l Power ON / OFF l Output voltage & current setting & reading. l Working state monitoring (constant voltage, constant current, fault) | ||
Display mode | 41/2 LCD digital display | ||
Display error | ≤±0.5%FS ± 1digit (range: 5%~100% of the rated value) | ||
Display resolution | As per output voltage & current values. | ||
Protection & Monitoring functions | Input protection | Input lack phase protection. | |
Output over voltage protection (OVP) | Power supply automatically cuts off output and alarms when output has over voltage. | ||
Output over current protection (OCP) | Power supply automatically cuts off output and alarms when the output has over current. | ||
Over temperature protection (OTP) | Power supply automatically cuts off output and alarms when the internal temperature of the power supply exceeds its threshold value. | ||
Output short-circuit protection | Power supply automatically switches to CC working when the output has short-circuit. | ||
Over-loading capacity | Withstand working with 1.05 times of rated current. | ||
Noise | ≤65dB | ||
Protection degree | IP20 | ||
Cooling method | l Forced air cooling l Forced air cooling + internal water-cooling loop. Direction: The lower part of the left and right sides - In and Top - Out wind. Differ as per output power rating. | ||
Inverter transient protection response time | ≤10us | ||
Working environment conditions | Ambient temperature | -5℃～+45℃ | |
Humidity | 10%～80%(non-condensing) | ||
Height | ≤1000m | ||
Location | Indoor use only No conductive dust, gas or steam that destroys the insulating medium No severe vibration and shock, good ventilation. | ||
Size (W*H*D) (mm) | 482*265.5*566.5 (19” 6U standard chassis) | ||
Weight | Approx. 45Kg | ||
Note: every power supply has 48 hours full load burn-in test @ 40℃ | |||
Power Supply Front and Rear Panels Description

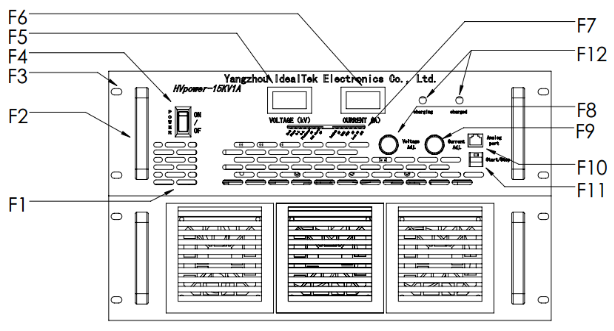

Front panel description
No. | Name | Function | Operation / display instruction |
F1 | Control cabinet air inlet | Control cabinet heat dissipation air inlet | Keep it clean and smooth |
F2 | Handle | For moving and lifting purpose | |
F3 | Mounting hole | For cabinet installing and fixing | |
F4 | POWER switch | Supply electric ON/OFF switch | Switch to ON position è Power ON Switch to OFF position è Power OFF |
F5 | VOLTAGE | Output voltage real-time display | Digital LED display |
F6 | CURRENT | Output current real-time display | Digital LED display |
F7 | Indicator lights | Real-time indication of module working state | Indicator lights display |
F8 | Voltage Adj. | Output voltage adjusting | Turn as icon, clockwise adjusting for increasing output voltage, anticlockwise adjusting for decreasing output voltage. |
F9 | Current Adj. | Output current adjusting | Turn as icon, clockwise adjusting for increasing output current, anticlockwise adjusting for decreasing output current. |
F10 | Analog port | 232/485 optional port (N/A for this unit) | Please connect to DB9 port for communication with host. |
F11 | Start/Stop (with lock) | HV output start/stop | Press down (green light ON) è HV START Press up (green light OFF) è HV STOP |
F12 | Charging/Charged | Charging / Charged state indicator light | Charging lighted è Under charging. Charged lighted è Charging finished. |

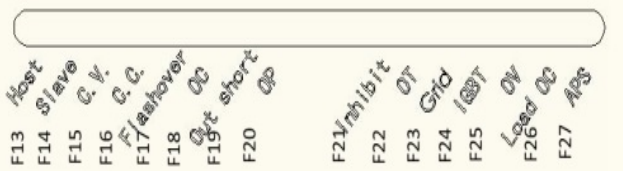

No. | Name | Function | Operation / display instruction |
F13 | Host indicator light | Green LED light, lighted when power supply works as host unit under multi-unit parallel-working. Note: host indicator light lighted under single-unit working. | Indicator lights display |
F14 | Slave indicator light | Green LED light, lighted when power supply works as slave unit under multi-unit parallel-working. Note: slave indicator light not lighted under single-unit working. | Indicator lights display |
F15 | C.V. indicator light | Green LED light, lighted when power supply works under CV state. | Indicator lights display |
F16 | C.C. indicator light | Green LED light, lighted when power supply works under CC state. | Indicator lights display |
F17 | Flashover indicator light | Red LED light, lighted when power supply output has disruptive discharging. | Indicator lights display |
F18 | OC indicator light | Red LED light, lighted when power supply has internal inverter output over current. | Indicator lights display |
F19 | Out short indicator light | Red LED light, lighted when power supply has output short-circuits. | Indicator lights display |
F20 | OP indicator light | Red LED light, lighted when output power of high voltage power supply exceeds the limit. | Indicator lights display |
F21 | Inhibit indicator light | Red LED light, lighted when power output is prohibited by client's external nodes. | Indicator lights display |
F22 | OT indicator light | Red LED light, lighted when power supply has internal module over temperature. | Indicator lights display |
F23 | Grid indicator light | Red LED light, lighted when power supply has input abnormal (i.e.: lack phase or out of scope) | Indicator lights display |
F24 | IGBT indicator light | Red LED light, lighted when power supply has internal inverter fault | Indicator lights display |
F25 | OV indicator light | Red LED light, lighted when output voltage goes out of scope. | Indicator lights display |
F26 | Load OC indicator light | Red LED light, lighted when output current goes out of scope. | Indicator lights display |
F27 | APS indicator light | Red LED light, lighted when internal auxiliary power supply is working. | Indicator lights display |

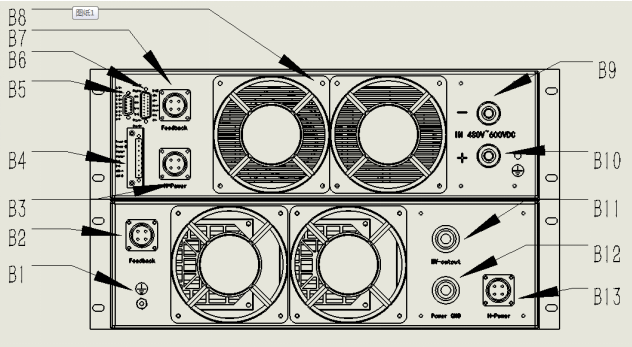

Rear panel description
No. | Name | Function | Operation / display instruction |
B1 | GND | Main circuit part, connected to earth. | Separately connected to earth. |
B2 | HV cabinet (Feedback) air socket | For connection of HV cabinet and control cabinet. | Connect to control cabinet (Feedback) air plug |
B3 | Control cabinet (H-power) air socket | For connection of control cabinet and HV cabinet. | Connect to HV cabinet (H-power) air plug |
B4 | Control cabinet input port | Remote 485 signal input port | Leave it unconnected if no 485 signal used. |
B5 | Control cabinet DB9 port | Remote control / reading port | Connect in external analog signal for remote control / reading (i.e.: 0~10V) |
B6 | Control cabinet DB15 port | Remote start/stop, fault state TTL signal port | Connect in external start/stop signal (i.e.: 24V) Connect in external analog signal for fault state indication (i.e.: TTL signal) |
B7 | Control cabinet (Feedback) air socket | For connection of control cabinet and HV cabinet | Connect to HV cabinet (Feedback) air plug |
B8 | Cooling fan (temperature-controlled) | Exhaust fan, controlled by temperature inside the cabinet | The higher the temperature inside cabinet, the faster the fan speed is. |
B9 | IN 480V~600VDC | Connects to DC480V~600V input | Red is positive, black is negative. |
B10/11 | HV-output | Negative HV output connector | Connection port |
B12 | Power GND | Positive output connector | Connection port |
B13 | HV cabinet (H-power) air socket | For connection of HV cabinet and control cabinet. | Connect to control cabinet (H-power) air plug |

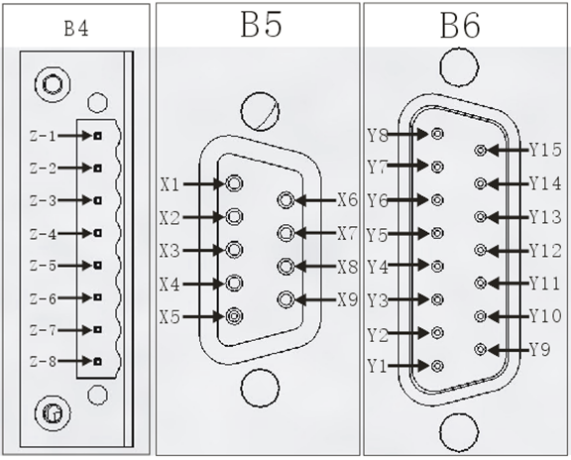

B4 Wiring diagram / B5 Internal wiring / B6 Wiring diagram | |||
No. | Name | Function | Operation / display instruction |
Z-1 | 485-A | 485-A | 485-A |
Z-2 | 485-B | 485-B | 485-B |
Z-3 | Remote ON/OFF state node (optional) (N/A for this unit) | ON/OFF state node + | Power OFF, node closed Power ON, node open |
Z-4 | ON/OFF state node - | ||
X1 | Voltage remote control (optional) (N/A for this unit) | Voltage remote control + | 0-10V signal for 0-15KV output voltage setting |
X2 | Voltage remote control - | ||
X3 | Current remote control (optional) (N/A for this unit) | Current remote control + | 0-10V signal for 0-1000mA output current setting |
X4 | Current remote control - | ||
X5 | Voltage remote reading (optional) (N/A for this unit) | Voltage remote reading + | 0-10V signal for 0-15KV output voltage reading |
X6 | Voltage remote reading - | ||
X7 | Current remote reading (optional) (N/A for this unit) | Current remote reading + | 0-10V signal for 0-1000mA output current reading |
X8 | Current remote reading - | ||
X9 | N/A | N/A | N/A |
Y1 | Remote Start/Stop control (optional) (N/A for this unit) | Start: 24V+ | External 24V voltage for HV output remote start/stop control |
Y2 | Start: 24V- | ||
Y3 | N/A | N/A | N/A |
Y4 | N/A | N/A | N/A |
Y5 | Output voltage state signal (optional) (N/A for this unit) | Output - | Output voltage > 15kv, collector short circuit. Output voltage < 15kv, collector open circuit. |
Y6 | Output + | ||
Y7 | Power supply fault detection signal (optional) (N/A for this unit) | Output - | Power supply is normal working, collector short circuit. Power supply has fault, collector open circuit. |
Y8 | Output + | ||
Y9 | Output current state signal (optional) (N/A for this unit) | Output - | Output current > 1.05A, collector short circuit. Output current < 1.05A, collector open circuit. |
Y10 | Output + | ||
Y11 | ARC state detection signal (optional) (N/A for this unit) | Output - | Power supply has abnormal ARC state, collector short circuit. Power supply is normal working, collector open circuit. |
Y12 | Output + | ||
Y13 | OT state signal (optional) (N/A for this unit) | Output - | Power supply has over temperature, collector short circuit. Power supply is normal working, collector open circuit. |
Y14 | Output + | ||
Y15 | N/A | N/A | N/A |
Safety caution
1.This power module has HV output, only professional person could operate it.
2.Please make sure of good grounding before operation.
3.Capacitor charging power supply has low internal stored energy, please NO no-loading working.
4.Keep power module clean and good ventilation.
5.HV input & output connectors or HV load no touch anything.
Standard model list | |||||||
KV | mA | P (KW) | Model | KV | mA | P (KW) | Model |
5 | 1200 | 6 | CCPS-(N/P)6kW-5kV | 10 | 1200 | 12 | CCPS-(N/P)12kW-10kV |
10 | 600 | 6 | CCPS-(N/P)6kW-10kV | 15 | 800 | 12 | CCPS-(N/P)12kW-15kV |
15 | 400 | 6 | CCPS-(N/P)6kW-15kV | 20 | 600 | 12 | CCPS-(N/P)12kW-20kV |
20 | 300 | 6 | CCPS-(N/P)6kW-20kV | 30 | 200 | 6 | CCPS-(N/P)6kW-30kV |
30 | 167 | 5 | CCPS-(N/P)5kW-30kV | 40 | 150 | 6 | CCPS-(N/P)6kW-40kV |
40 | 125 | 5 | CCPS-(N/P)5kW-40kV | 45 | 133 | 6 | CCPS-(N/P)6kW-45kV |
50 | 100 | 5 | CCPS-(N/P)5kW-50kV | 50 | 120 | 6 | CCPS-(N/P)6kW-50kV |
60 | 100 | 6 | CCPS-(N/P)6kW-60kV | 60 | 200 | 12 | CCPS-(N/P)12kW-80kV |
More models are coming soon. | |||||||
Overview
CCPS-6U series high voltage power supply is an upgraded version of CCP-6U high voltage capacitor charging power supply. It uses a 19-inch 6U standard rack-mounted chassis, with an output power of up to 10KW and an output voltage level of 5KV / 10KV / 20KV / 30KV / 40KV / 50KV / 60KV, the high-voltage charging power supply has achieved a substantial increase in the charging capacity of the rack-mounted high-voltage charging power supply on the basis of maintaining high efficiency, high output response speed and faster protection and starting self-recovery.
The front panel of this series of high-voltage charging power supplies is controlled by a potentiometer with the LCD meters showing high-voltage output. This series of high-voltage charging power supplies can be equipped with RS485 interface and control software to control and monitor the operating parameters of the high-voltage power supply.
The power supply is equipped with more comprehensive protections to ensure long-term and reliable operation of the power supply at full load, such as: input phase loss, output overvoltage, overcurrent, over heat, short circuit protection, etc., and can also be equipped with a discharging circuit to deal with high-voltage charging and discharging conditions for effective protection of the high-voltage power supplies and the capacitors under test.
Features
Can be used as a HV DC power supply or as HV capacitor charging power supply.
Output voltage adjustable from 0 to 100%
Output power: Average charging @ 5KJ/S and the peak charging power can reach 12KW.
Charging in constant current mode and switch to constant current mode till fully charged.
Unique double isolated system, strong anti-interference ability.
Forced air cooling plus internal water cooling, very rugged design.
Optional functions
0~10V analog signal control (DB interface <6U>) (+AC)
RS communication interface (RS232 / RS485 optional) (+RC)
Specifications | |||
Input | Connection mode | Three-phase, four-wire (PE), TN-S supply mode | |
Voltage | 380Vac±10% | ||
Frequency | 50Hz/ 60Hz ± 10% | ||
Current | As per output power. | ||
Output | Rated power | 6KW ~ 12KW (Max.) available ** | |
Output voltage adjusting range | 5KV ~ 60KV available ** (For other output voltages, please contact us for details) | ||
Output current adjusting range | 0A ~ ****mA | ||
Output polarity | Positive or Negative (both available) Client must choose one output polarity before ordering. | ||
Working mode | Constant voltage (CV) / Constant current (CC) | ||
Accuracy (C.V.) | Line regulation | ≤0.5% FS ± 1 digit (Output voltage change rate only caused by changes of input voltage over ± 10% range of variation) | |
Load regulation | ≤1% FS ± 1 digit (Output voltage change rate only caused by full range load changes) | ||
Accuracy (C.C.) | Line regulation | ≤0.5% FS ± 1 digit (Output voltage change rate only caused by changes of input voltage over ± 10% range of variation) | |
Load regulation | ≤0.5% FS ± 1 digit (Output voltage change rate only caused by full range load changes) | ||
Temperature drift | ≤0.03% FS (Output voltage change rate every 8 hours after power on for half an hour) | ||
Ripple (p-p) | ≤0.5% FS (measured @ 80% ~ 100% rated output) | ||
Output cable | HV connector and line provided by IdealTek. | ||
Efficiency | ≥90% | ||
Setting & Display | Control mode | Local | 10-turn potentiometer on front panel. |
Remote (Optional) | RS485 communication interface. In line with MODBUS-RTU standard. The user can control and monitor the power supply via RS485 connection with computer, E.g: l Power ON / OFF l Output voltage & current setting & reading. l Working state monitoring (constant voltage, constant current, fault) | ||
Display mode | 41/2 LCD digital display | ||
Display error | ≤±0.5%FS ± 1digit (range: 5%~100% of the rated value) | ||
Display resolution | As per output voltage & current values. | ||
Protection & Monitoring functions | Input protection | Input lack phase protection. | |
Output over voltage protection (OVP) | Power supply automatically cuts off output and alarms when output has over voltage. | ||
Output over current protection (OCP) | Power supply automatically cuts off output and alarms when the output has over current. | ||
Over temperature protection (OTP) | Power supply automatically cuts off output and alarms when the internal temperature of the power supply exceeds its threshold value. | ||
Output short-circuit protection | Power supply automatically switches to CC working when the output has short-circuit. | ||
Over-loading capacity | Withstand working with 1.05 times of rated current. | ||
Noise | ≤65dB | ||
Protection degree | IP20 | ||
Cooling method | l Forced air cooling l Forced air cooling + internal water-cooling loop. Direction: The lower part of the left and right sides - In and Top - Out wind. Differ as per output power rating. | ||
Inverter transient protection response time | ≤10us | ||
Working environment conditions | Ambient temperature | -5℃～+45℃ | |
Humidity | 10%～80%(non-condensing) | ||
Height | ≤1000m | ||
Location | Indoor use only No conductive dust, gas or steam that destroys the insulating medium No severe vibration and shock, good ventilation. | ||
Size (W*H*D) (mm) | 482*265.5*566.5 (19” 6U standard chassis) | ||
Weight | Approx. 45Kg | ||
Note: every power supply has 48 hours full load burn-in test @ 40℃ | |||
Power Supply Front and Rear Panels Description

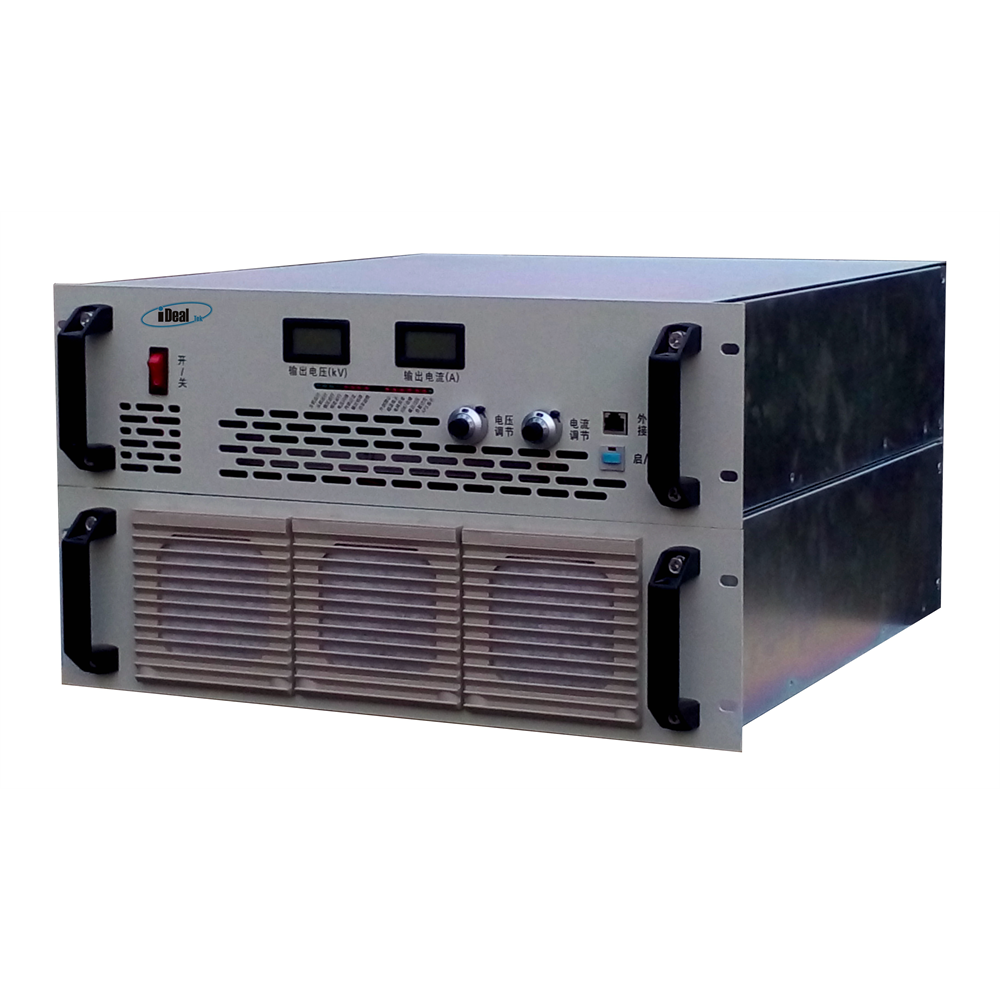

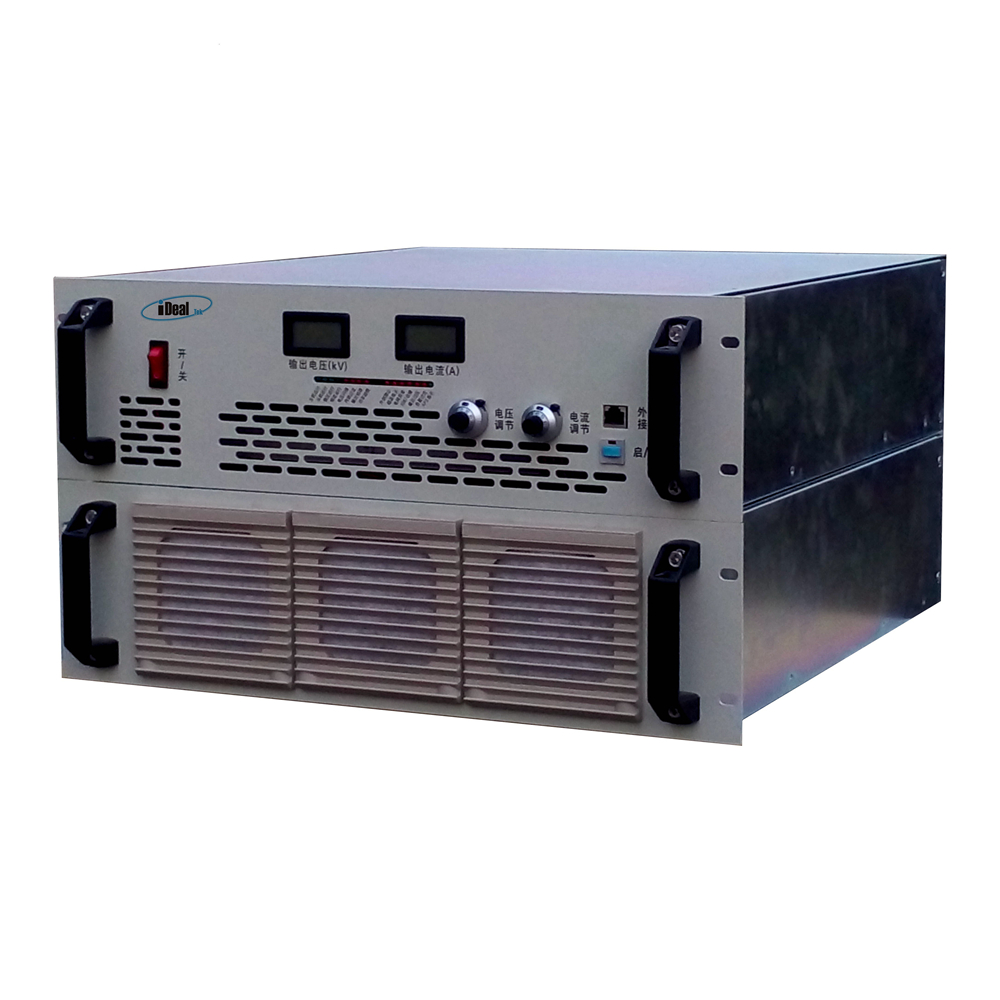

Front panel description
No. | Name | Function | Operation / display instruction |
F1 | Control cabinet air inlet | Control cabinet heat dissipation air inlet | Keep it clean and smooth |
F2 | Handle | For moving and lifting purpose | |
F3 | Mounting hole | For cabinet installing and fixing | |
F4 | POWER switch | Supply electric ON/OFF switch | Switch to ON position è Power ON Switch to OFF position è Power OFF |
F5 | VOLTAGE | Output voltage real-time display | Digital LED display |
F6 | CURRENT | Output current real-time display | Digital LED display |
F7 | Indicator lights | Real-time indication of module working state | Indicator lights display |
F8 | Voltage Adj. | Output voltage adjusting | Turn as icon, clockwise adjusting for increasing output voltage, anticlockwise adjusting for decreasing output voltage. |
F9 | Current Adj. | Output current adjusting | Turn as icon, clockwise adjusting for increasing output current, anticlockwise adjusting for decreasing output current. |
F10 | Analog port | 232/485 optional port (N/A for this unit) | Please connect to DB9 port for communication with host. |
F11 | Start/Stop (with lock) | HV output start/stop | Press down (green light ON) è HV START Press up (green light OFF) è HV STOP |
F12 | Charging/Charged | Charging / Charged state indicator light | Charging lighted è Under charging. Charged lighted è Charging finished. |
No. | Name | Function | Operation / display instruction |
F13 | Host indicator light | Green LED light, lighted when power supply works as host unit under multi-unit parallel-working. Note: host indicator light lighted under single-unit working. | Indicator lights display |
F14 | Slave indicator light | Green LED light, lighted when power supply works as slave unit under multi-unit parallel-working. Note: slave indicator light not lighted under single-unit working. | Indicator lights display |
F15 | C.V. indicator light | Green LED light, lighted when power supply works under CV state. | Indicator lights display |
F16 | C.C. indicator light | Green LED light, lighted when power supply works under CC state. | Indicator lights display |
F17 | Flashover indicator light | Red LED light, lighted when power supply output has disruptive discharging. | Indicator lights display |
F18 | OC indicator light | Red LED light, lighted when power supply has internal inverter output over current. | Indicator lights display |
F19 | Out short indicator light | Red LED light, lighted when power supply has output short-circuits. | Indicator lights display |
F20 | OP indicator light | Red LED light, lighted when output power of high voltage power supply exceeds the limit. | Indicator lights display |
F21 | Inhibit indicator light | Red LED light, lighted when power output is prohibited by client's external nodes. | Indicator lights display |
F22 | OT indicator light | Red LED light, lighted when power supply has internal module over temperature. | Indicator lights display |
F23 | Grid indicator light | Red LED light, lighted when power supply has input abnormal (i.e.: lack phase or out of scope) | Indicator lights display |
F24 | IGBT indicator light | Red LED light, lighted when power supply has internal inverter fault | Indicator lights display |
F25 | OV indicator light | Red LED light, lighted when output voltage goes out of scope. | Indicator lights display |
F26 | Load OC indicator light | Red LED light, lighted when output current goes out of scope. | Indicator lights display |
F27 | APS indicator light | Red LED light, lighted when internal auxiliary power supply is working. | Indicator lights display |
Rear panel description
No. | Name | Function | Operation / display instruction |
B1 | GND | Main circuit part, connected to earth. | Separately connected to earth. |
B2 | HV cabinet (Feedback) air socket | For connection of HV cabinet and control cabinet. | Connect to control cabinet (Feedback) air plug |
B3 | Control cabinet (H-power) air socket | For connection of control cabinet and HV cabinet. | Connect to HV cabinet (H-power) air plug |
B4 | Control cabinet input port | Remote 485 signal input port | Leave it unconnected if no 485 signal used. |
B5 | Control cabinet DB9 port | Remote control / reading port | Connect in external analog signal for remote control / reading (i.e.: 0~10V) |
B6 | Control cabinet DB15 port | Remote start/stop, fault state TTL signal port | Connect in external start/stop signal (i.e.: 24V) Connect in external analog signal for fault state indication (i.e.: TTL signal) |
B7 | Control cabinet (Feedback) air socket | For connection of control cabinet and HV cabinet | Connect to HV cabinet (Feedback) air plug |
B8 | Cooling fan (temperature-controlled) | Exhaust fan, controlled by temperature inside the cabinet | The higher the temperature inside cabinet, the faster the fan speed is. |
B9 | IN 480V~600VDC | Connects to DC480V~600V input | Red is positive, black is negative. |
B10/11 | HV-output | Negative HV output connector | Connection port |
B12 | Power GND | Positive output connector | Connection port |
B13 | HV cabinet (H-power) air socket | For connection of HV cabinet and control cabinet. | Connect to control cabinet (H-power) air plug |
B4 Wiring diagram / B5 Internal wiring / B6 Wiring diagram | |||
No. | Name | Function | Operation / display instruction |
Z-1 | 485-A | 485-A | 485-A |
Z-2 | 485-B | 485-B | 485-B |
Z-3 | Remote ON/OFF state node (optional) (N/A for this unit) | ON/OFF state node + | Power OFF, node closed Power ON, node open |
Z-4 | ON/OFF state node - | ||
X1 | Voltage remote control (optional) (N/A for this unit) | Voltage remote control + | 0-10V signal for 0-15KV output voltage setting |
X2 | Voltage remote control - | ||
X3 | Current remote control (optional) (N/A for this unit) | Current remote control + | 0-10V signal for 0-1000mA output current setting |
X4 | Current remote control - | ||
X5 | Voltage remote reading (optional) (N/A for this unit) | Voltage remote reading + | 0-10V signal for 0-15KV output voltage reading |
X6 | Voltage remote reading - | ||
X7 | Current remote reading (optional) (N/A for this unit) | Current remote reading + | 0-10V signal for 0-1000mA output current reading |
X8 | Current remote reading - | ||
X9 | N/A | N/A | N/A |
Y1 | Remote Start/Stop control (optional) (N/A for this unit) | Start: 24V+ | External 24V voltage for HV output remote start/stop control |
Y2 | Start: 24V- | ||
Y3 | N/A | N/A | N/A |
Y4 | N/A | N/A | N/A |
Y5 | Output voltage state signal (optional) (N/A for this unit) | Output - | Output voltage > 15kv, collector short circuit. Output voltage < 15kv, collector open circuit. |
Y6 | Output + | ||
Y7 | Power supply fault detection signal (optional) (N/A for this unit) | Output - | Power supply is normal working, collector short circuit. Power supply has fault, collector open circuit. |
Y8 | Output + | ||
Y9 | Output current state signal (optional) (N/A for this unit) | Output - | Output current > 1.05A, collector short circuit. Output current < 1.05A, collector open circuit. |
Y10 | Output + | ||
Y11 | ARC state detection signal (optional) (N/A for this unit) | Output - | Power supply has abnormal ARC state, collector short circuit. Power supply is normal working, collector open circuit. |
Y12 | Output + | ||
Y13 | OT state signal (optional) (N/A for this unit) | Output - | Power supply has over temperature, collector short circuit. Power supply is normal working, collector open circuit. |
Y14 | Output + | ||
Y15 | N/A | N/A | N/A |
Safety caution
1.This power module has HV output, only professional person could operate it.
2.Please make sure of good grounding before operation.
3.Capacitor charging power supply has low internal stored energy, please NO no-loading working.
4.Keep power module clean and good ventilation.
5.HV input & output connectors or HV load no touch anything.
Standard model list | |||||||
KV | mA | P (KW) | Model | KV | mA | P (KW) | Model |
5 | 1200 | 6 | CCPS-(N/P)6kW-5kV | 10 | 1200 | 12 | CCPS-(N/P)12kW-10kV |
10 | 600 | 6 | CCPS-(N/P)6kW-10kV | 15 | 800 | 12 | CCPS-(N/P)12kW-15kV |
15 | 400 | 6 | CCPS-(N/P)6kW-15kV | 20 | 600 | 12 | CCPS-(N/P)12kW-20kV |
20 | 300 | 6 | CCPS-(N/P)6kW-20kV | 30 | 200 | 6 | CCPS-(N/P)6kW-30kV |
30 | 167 | 5 | CCPS-(N/P)5kW-30kV | 40 | 150 | 6 | CCPS-(N/P)6kW-40kV |
40 | 125 | 5 | CCPS-(N/P)5kW-40kV | 45 | 133 | 6 | CCPS-(N/P)6kW-45kV |
50 | 100 | 5 | CCPS-(N/P)5kW-50kV | 50 | 120 | 6 | CCPS-(N/P)6kW-50kV |
60 | 100 | 6 | CCPS-(N/P)6kW-60kV | 60 | 200 | 12 | CCPS-(N/P)12kW-80kV |
More models are coming soon. | |||||||
