Overview

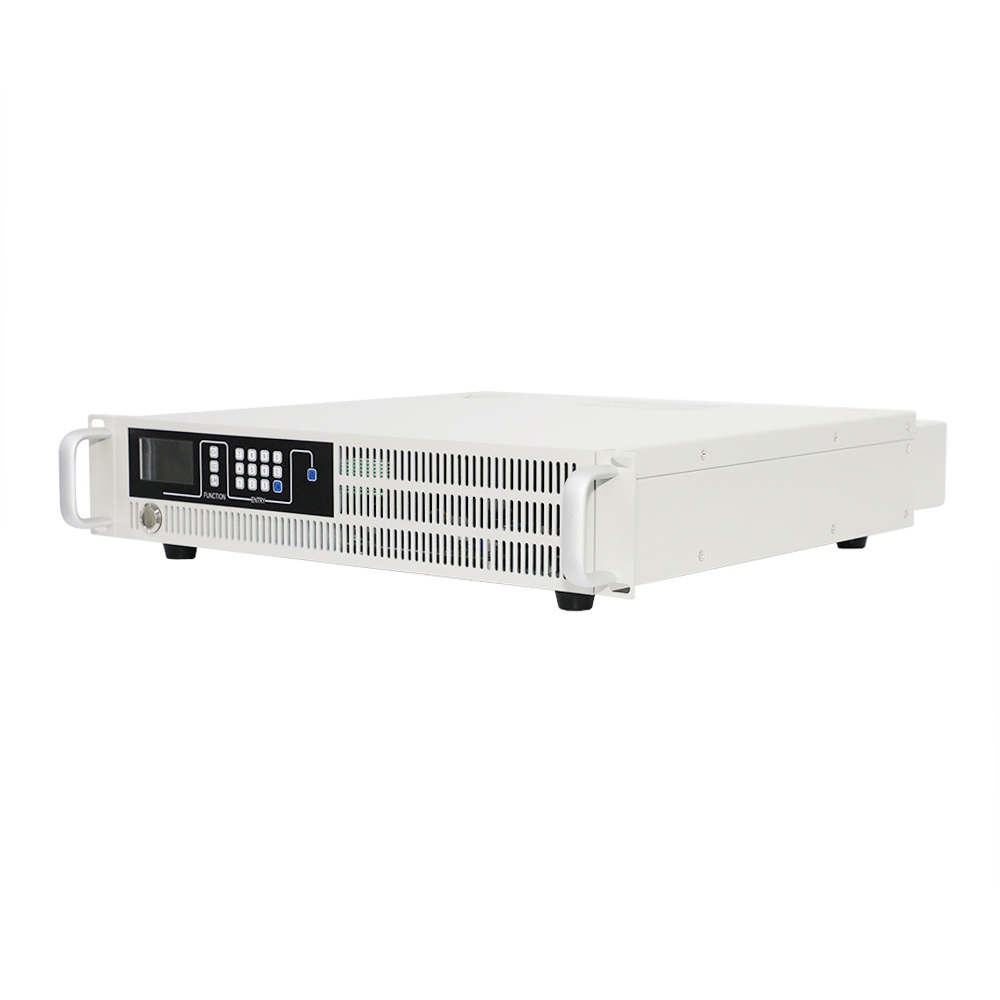

CSP-3KW DC power supply is a programmable DC power supply with 3KW rated output power built in a 19-inch 2U standard rack-mounted chassis. The output voltage levels, at 30Vdc / 40Vdc / 50Vdc / 60Vdc / 100Vdc / 125Vdc / 150Vdc / 200Vdc / 300Vdc / 600Vdc. The adoption high frequency switching topology based on IGBT device gives high efficiency and high switching speed features of switching DC power supplies, and the digital control circuit with a built-in microprocessor gives the intelligent output capability of programmable DC power supplies.
The 3KW programmable power supply uses silica gel buttons and a stepless knob on control panel for power supply programming control. The 4.3-inch LCD provides intuitive and real-time output reading and monitoring of power supply. The standard RS485 interface conforming to the MODBUS-RTU international protocol can realize the remote control programming of the programmable DC power supplies.
At the same time, the 3KW programmable DC power supply has perfect protection functions and can withstand long-term continuous operation. It is the best choice for research units and laboratories as an adjustable DC power supply or production line as a product life test power supply.
Features
The power supply chassis is produced using laser technology, with unique color matching and excellent baking paint production technology, which gives the power supply generous and elegant appearance.
The internal circuit boards of power products all produced by PCBA and DIP process, to reduce human faults. The production adopts process inspection for each step, which reduces the defective assembly rate and further improves product reliability.
Firm and reliable internal structure design and high-quality packaging reduce the probability of damage that may be caused by transportation.
The power supply adopts LCD display, preset voltage / current values, output voltage / current values, real-time power, local / remote working mode & start / stop status are all displayed on LCD interface, which is convenient for customers to control & monitor the status of DC power supply.
High display accuracy: 0.1% voltage display accuracy in CV mode, 5 digits voltage display with minimum 1mV resolution; 0.2% current display accuracy in CC mode, 4 digits current display with minimum 1mA resolution.
The power supply can be used as a constant current source for its low output current ripple while ensuring low voltage ripple.
The power supply voltage and current have almost no starting impact, and the power output dynamic response time is excellent
With output programming function, you can edit step waveforms, pulse waveforms, etc., and the rising slope of the voltage and current.

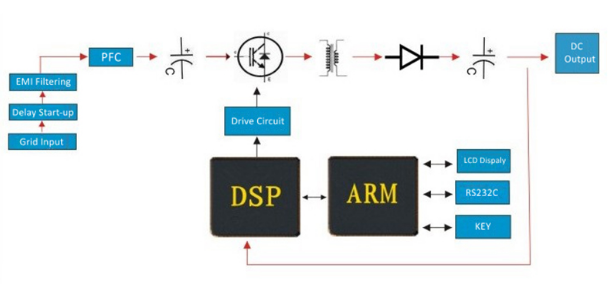

Block diagram
Applications
LED and energy-saving lamps aging test.
Switching power supply and power adapter aging test.
Photovoltaic inverter aging test.
Aerospace and national defense industry.
Testing and aging of electric vehicle motors, controllers, and DC motors
Capacitors, resistors, relays, transistors, sensors and other electronic devices.
Electrolytic, electroplating, and corroded aluminum foil processing.
LCD, touch screen test.
Automotive electronics, DC motor, motor controller, cigarette lighter, audio and video burn-in test.
Featured functions

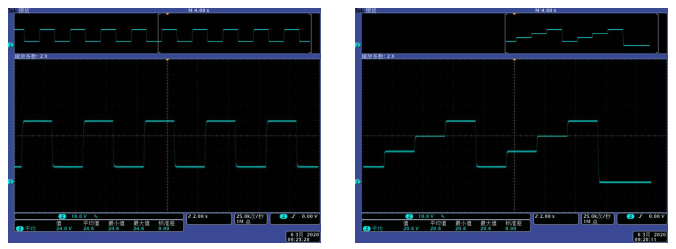

Programming function
The power supply has output programmable function for 10 groups of different parameters and the number of cycles. Such as initial voltage/current value, final voltage/current value, hold time and other parameters setting. And, it can realize multi-step continuous output, single-step output and cyclic output functions. Different modes such as voltage step and voltage sequence can also be realized.
The voltage and current are settable within the full range.
The holding time setting range: 1S~10000S
The number of cycles: 1~65535
The programming mode ON/OFF can be set through the parameter setting interface. In the programming mode, the normal voltage and current parameter settings are invalid.

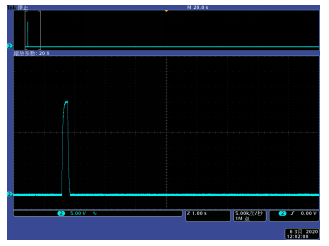

Excellent dynamic response speed

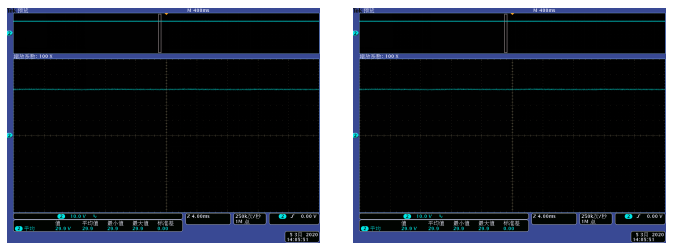

Output dynamic response waveform under 10% ~ 50% load change | Output dynamic response waveform under 50% ~ 10% load change |

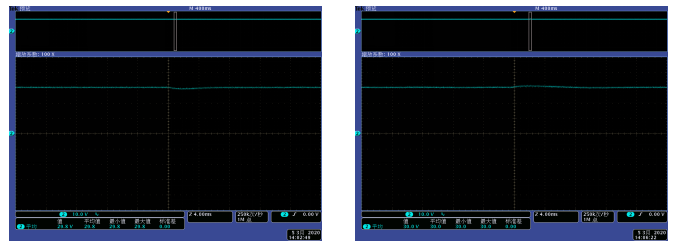

Output dynamic response waveform under 50% ~ 90% load change | Output dynamic response waveform under 90% ~ 50% load change |

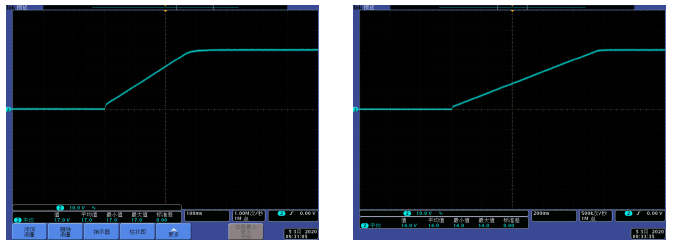

No overshoot at output start-up & Settable output voltage and current rising slope
300ms rising time | 1000ms rising time |

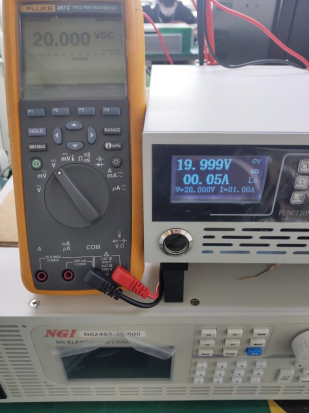

Ultra-high output display accuracy
Comprehensive information LCD display
Preset voltage/current value; output voltage/current value; real time power; local/remote control working mode; power supply start/stop status information can be displayed in the LCD on the power supply front panel at the same time, which is convenient for customers to monitor the status of the DC power supply.
Specifications | |||
Input | Phase | Single – phase | |
Voltage | 220Vac±10% | ||
Frequency | 50Hz/60Hz | ||
Power factor | ＞0.92 | ||
Output | DC Voltage | Accuracy | ＜0.2% of rated value (CV mode) |
Load regulation (0 ~ 100% load variance) | ＜0.05% of rated value | ||
Line regulation (±10%△UAC) | ＜0.05% of rated value | ||
Regulation time (10% ~ 100% load variance) | ＜10ms | ||
Rise time from 10% to 90% loading | ＜100ms ~ 10s | ||
DC Current | Accuracy | ＜0.3% of rated value (CC mode) | |
Load regulation (1% ~ 100% load variance) | ＜0.15% of rated value | ||
Line regulation (±10%△UAC) | ＜0.05% of rated value | ||
DC Power | Accuracy | ＜0.5% of rated value | |
Isolation withstand voltage | AC Input to Shell | 1500VDC | |
AC Input to Output | 1500VDC | ||
DC Output to Shell | 500VDC | ||
Protection functions | Output voltage – limiting protection, output current – limiting protection, output power – limiting protection and over temperature protection | ||
Communication port | RS232 or RS485 In line with MODBUS-RTU standard. | ||
Cooling method | Forced air cooling | ||
Working temperature | -5℃ ~ 45℃ | ||
Storage temperature | -20℃ ~ 60℃ | ||
Relative humidity | ＜80%(non-condensing) | ||
Size (W*H*D) (mm) | 425*88*420 | ||
Weight | Approx. 12Kg | ||
Power Supply Front and Rear Panels Description

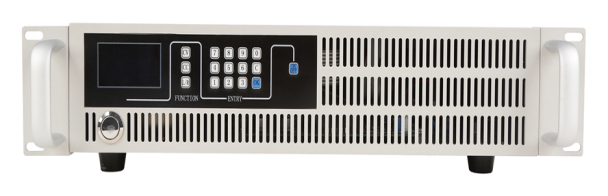

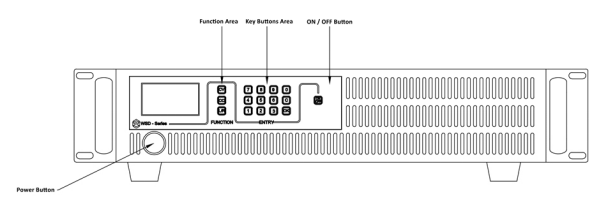

Front panel description
Key button identification | Key button description |
CV | Swith to power supply output voltage value setting |
CC | Swith to power supply output current value setting |
L/R | Local / Remote control switching |
0~9 | Number key buttons |
C | Return key button |
OK | Enter key button |
ON/OFF | Power supply output ON / OFF control |

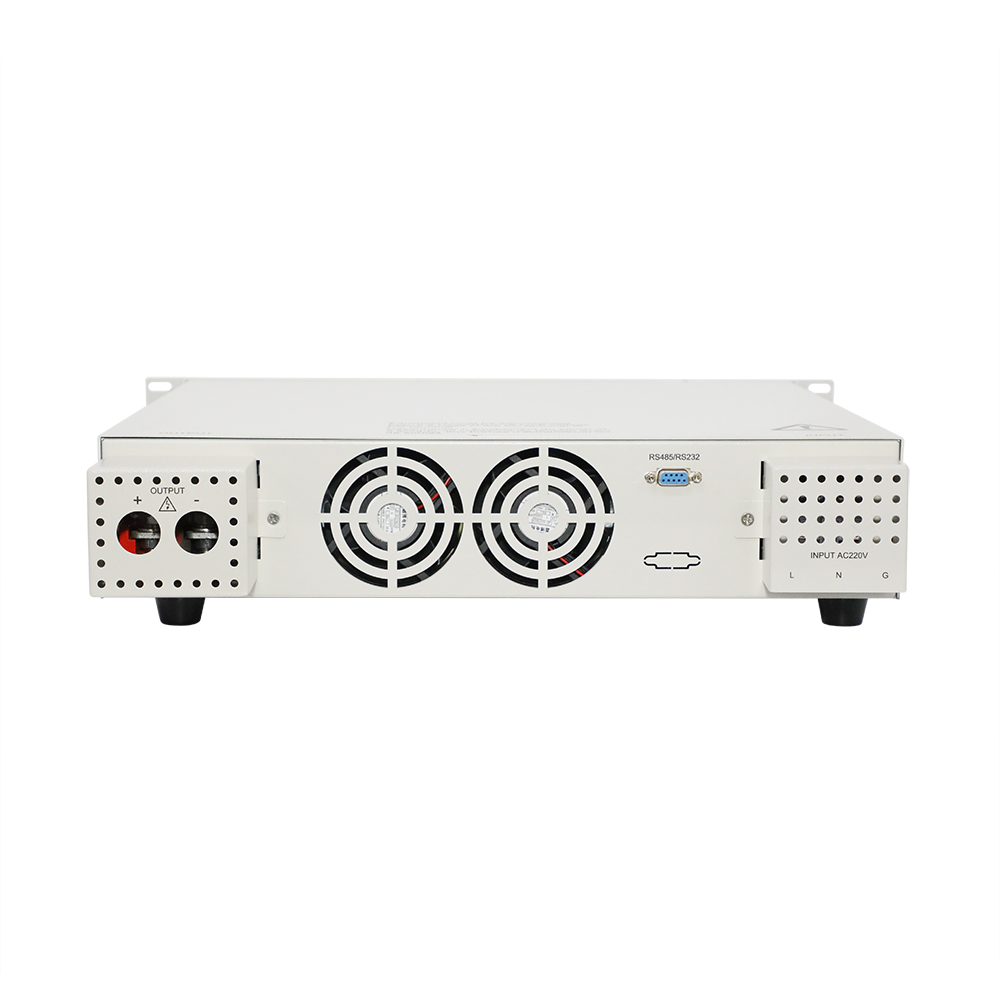

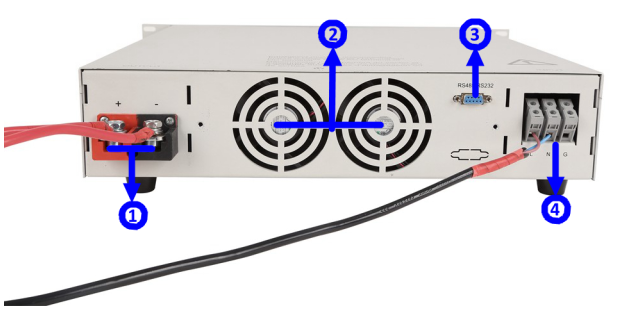

Rear panel description
No. | Description |
1 | DC output terminal, red is positive pole and black is negative pole. |
2 | The cooling fan air duct, NO blocking! |
3 | RS485 / RS232 communication interface |
4 | AC power connection terminal, make sure of well grounding. |
Power Supply Chassis Drawing
Standard model list | |||||||||
Model | CSP3010H | CSP4075 | CSP5060 | CSP6050 | CSP10H30 | CSP15H20 | CSP20H15 | CSP30H10 | CSP60H05 |
Rated power | 3KW | ||||||||
Rated voltage | 30.000V | 40.000V | 50.000V | 60.000V | 100.00V | 150.00V | 200.00V | 300.00V | 600.00V |
Rated current | 100.0A | 75.00A | 60.00A | 50.00A | 30.00A | 20.00A | 15.00A | 10.00A | 5.000A |
Voltage Ripple | Vrms＜0.3% | Vrms＜0.3% | Vrms＜0.3% | Vrms＜0.3% | Vrms＜0.3% | Vrms＜0.3% | Vrms＜0.3% | Vrms＜0.3% | Vrms＜0.3% |
Installation environment
Ambient temperature: Please have the power source working in safe temperature range (0℃ ~ 45℃) or it would affect life of power source.
Please install the power source at least 50cm distant from surroundings to have better ventilation.
Please install the power source away from vibration (less than 0.6G), especially equipment like puncher.
Keep the power source away from direct sunshine, humidity or place with water globule.
Keep the power source from corrosive, flammable & explosive gas.
Keep the power source away from oil stain, dust & metallic dust.
