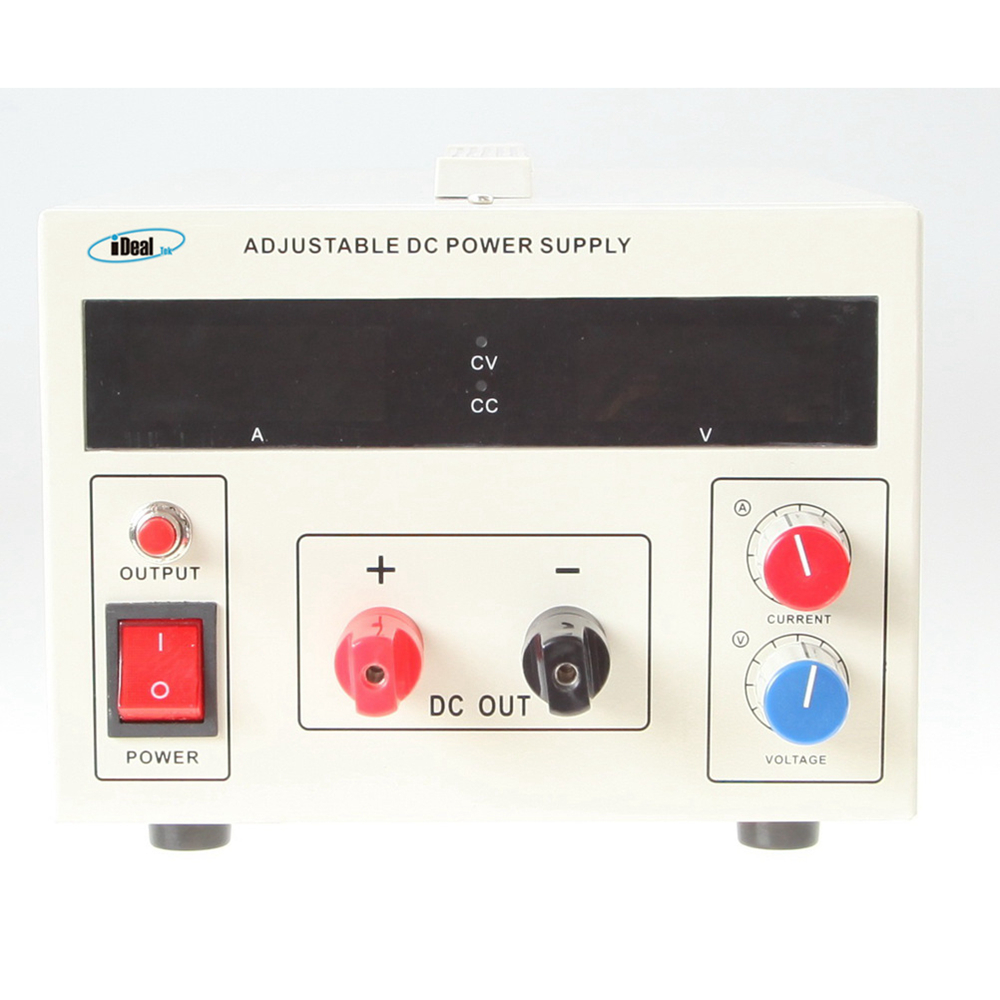

SMP 3000 Series Benchtop DC Power Supply

Power range: 200 ~ 1.5KW
Voltage range: 6 ~ 600V
Current range: 1 ~ 50A
205*165*380 portable chassis
Precise voltage and current setting and measurement capabilities
OVP, OCP, OTP protections etc.
CE certified
Availability:
Quantity:
Inquire Add to Basket

Overview

SMP3000 series DC power supplies are an economical, high-switching speed, high-power density desktop laboratory DC power supply based on MOSFETs. It adopts single-phase 220Vac input with designed output power 1.5KW and output voltage range from 6Vdc to 600Vdc.


SMP3000 DC power supply is a constant voltage and constant current adjustable DC power supply with low ripple. High-precision, high-efficiency electronic characteristics. It adopts small and compact design. The output voltage and output current of the power supply can be adjusted separately through the knobs on the front panel and the independent LED voltage and current meters can display the output voltage and current value separately.


The DC power supplies are equipped with over-current limiting and over-temperature protection, and are mainly used for LED testing, small precision electroplating, and electrical equipment testing and maintenance purposes.


Features

Max. Output power reaches 1500W.

CV / CC working modes, automatic switchable between two modes.

Voltage & Current continuously adjustable, 10-turn potentiometer setting.

Output voltage & current LED display.

Intelligent fan cooling, withstand continuous working.

Adaptability to continuous or dynamic loads.

Automatic shutdown for over heat.

205*165*380 portable housing.

Low ripple and noise.


Applications

Products burn-in test, such as DC motors, DC fans, vehicle DVD, vehicle AUDIO, resistors and capacitors etc.

LED, motors and DC fans test.

Accumulator charging.

Labs and universities.

Small electrolysis or electroplating system.

Other conditions need stable DC output


Optional functions

Analog control port via external 0 ~ 5V / 0 ~ 10V or 4mA ~ 20mA signal.

RS485 communication port

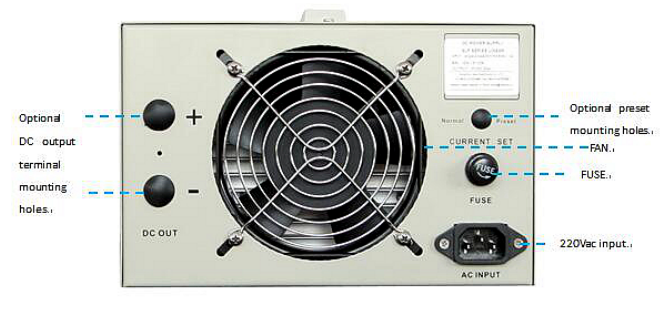

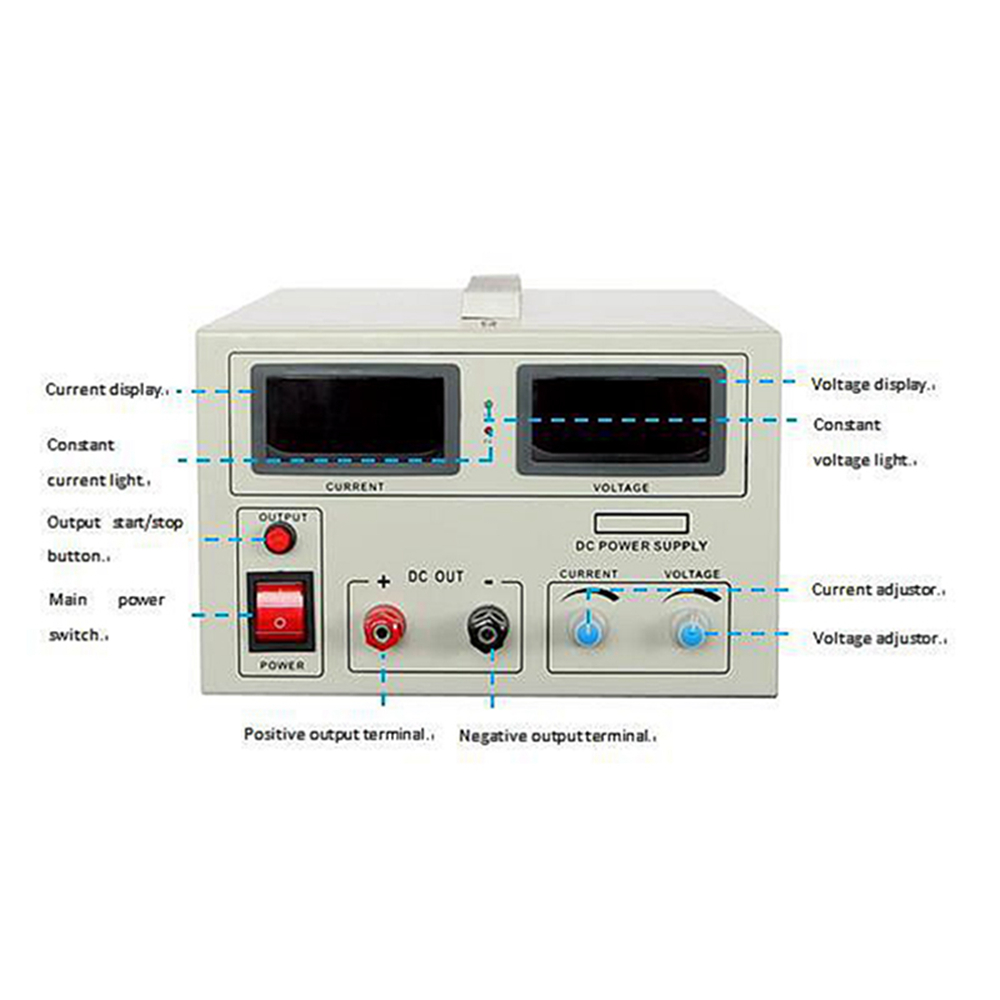

Front & Back Panel instruction



Specifications

Input

Voltage

Single – phase 220V±10%

Frequency

50Hz/60Hz

Output

Rated power

* kW

Output voltage

Adjusting range

0V ~ ***V


Line regulation

＜0.05%±20mV (Stability @ ±10% Δ UIN)


Load regulation

＜0.08%±20mV (Stability @ 10% ~ 90% load variance)


Ripple

500mV (RMS)


Response time

＜5mS (Regulation rate @ 10% ~ 100% load variance)

Output current

Adjusting range

0A ~ **A


Line regulation

＜0.2% (Stability @ ±10% Δ UIN)


Load regulation

＜0.08% (Stability @ 0 ~ 100% Δ UOUT)


Ripple

500mA (RMS)

Setting & Display

Control mode

Front panel button control

Display mode

LED digital display

Protection & Monitoring functions

Output over current protection (OCP)

Power supply automatically CC working and alarms when the output has over current.

Over temperature protection (OTP)

Power supply automatically cuts off output and alarms when the internal temperature of the power supply exceeds 85 °C.

Noise

≤55dB

Protection degree

IP20

Cooling method

Forced air cooling

Working conditions

Ambient temperature

0℃～45℃

Humidity

10%～90%(non-condensing)

Height

≤2000m

Size (W*H*D) (mm)

205*165*380 (handle excluded)

Weight

Approx. 6 ~ 8Kg

Model list

Model

Output

Dimension (W*H*D) (mm)

Packing

SMP3063

6.0V

30.0A

205*165*380

Carton

SMP3064

40.0A

205*165*380

Carton

SMP3183

18.0V

30.0A

205*165*380

Carton

SMP3184

40.0A

205*165*380

Carton

SMP3185

50.0A

205*165*380

Carton

SMP3302

30.0V

20.0A

205*165*380

Carton

SMP3303

30.0A

205*165*380

Carton

SMP3304

40.0A

205*165*380

Carton

SMP3305

50.0A

205*165*380

Carton

SMP3362

36.0V

20.0A

205*165*380

Carton

SMP3363

30.0A

205*165*380

Carton

SMP3364

40.0A

205*165*380

Carton

SMP3515

50.0V

15.0A

205*165*380

Carton

SMP3502

20.0A

205*165*380

Carton

SMP3503

30.0A

205*165*380

Carton

SMP3504

40.0A

205*165*380

Carton

SMP3602

60.0V

20.0A

205*165*380

Carton

SMP3603

30.0A

205*165*380

Carton

SMP3604

40.0A

205*165*380

Carton

SMP31002

100.0V

2.0A

205*165*380

Carton

SMP31004

4.0A

205*165*380

Carton

SMP31006

6.0A

205*165*380

Carton

SMP31008

8.0A

205*165*380

Carton

SMP31E10

10.0A

205*165*380

Carton

SMP31E15

15.0A

205*165*380

Carton

SMP32002

200.0V

2.0A

205*165*380

Carton

SMP32003

3.0A

205*165*380

Carton

SMP32004

4.0A

205*165*380

Carton

SMP32005

5.0A

205*165*380

Carton

SMP32006

6.0A

205*165*380

Carton

SMP32007

7.0A

205*165*380

Carton

SMP32501

250.0V

1.0A

205*165*380

Carton

SMP32502

2.0A

205*165*380

Carton

SMP32503

3.0A

205*165*380

Carton

SMP32504

4.0A

205*165*380

Carton

SMP32505

5.0A

205*165*380

Carton

SMP33001

300.0V

1.0A

205*165*380

Carton

SMP33002

2.0A

205*165*380

Carton

SMP33003

3.0A

205*165*380

Carton

SMP33004

4.0A

205*165*380

Carton

SMP33005

5.0A

205*165*380

Carton

SMP34001

400.0V

1.0A

205*165*380

Carton

SMP34002

2.0A

205*165*380

Carton

SMP34003

3.0A

205*165*380

Carton

SMP34004

4.0A

205*165*380

Carton

SMP35001

500.0V

1.0A

205*165*380

Carton

SMP35002

2.0A

205*165*380

Carton

SMP35003

3.0A

205*165*380

Carton

SMP36001

600.0V

1.0A

205*165*380

Carton

SMP36002

2.0A

205*165*380

Carton

SMP37001

700.0V

1.0A

205*165*380

Carton

SMP37002

2.0A

205*165*380

Carton

More models are coming soon.
