SMP 5000 Series Rack DC Power Supply SMP 5000 Series Rack DC Power Supply
SMP 5000 Series Rack DC Power Supply SMP 5000 Series Rack DC Power Supply
SMP 5000 Series Rack DC Power Supply SMP 5000 Series Rack DC Power Supply
SMP 5000 Series Rack DC Power Supply SMP 5000 Series Rack DC Power Supply
SMP 5000 Series Rack DC Power Supply SMP 5000 Series Rack DC Power Supply
SMP 5000 Series Rack DC Power Supply SMP 5000 Series Rack DC Power Supply

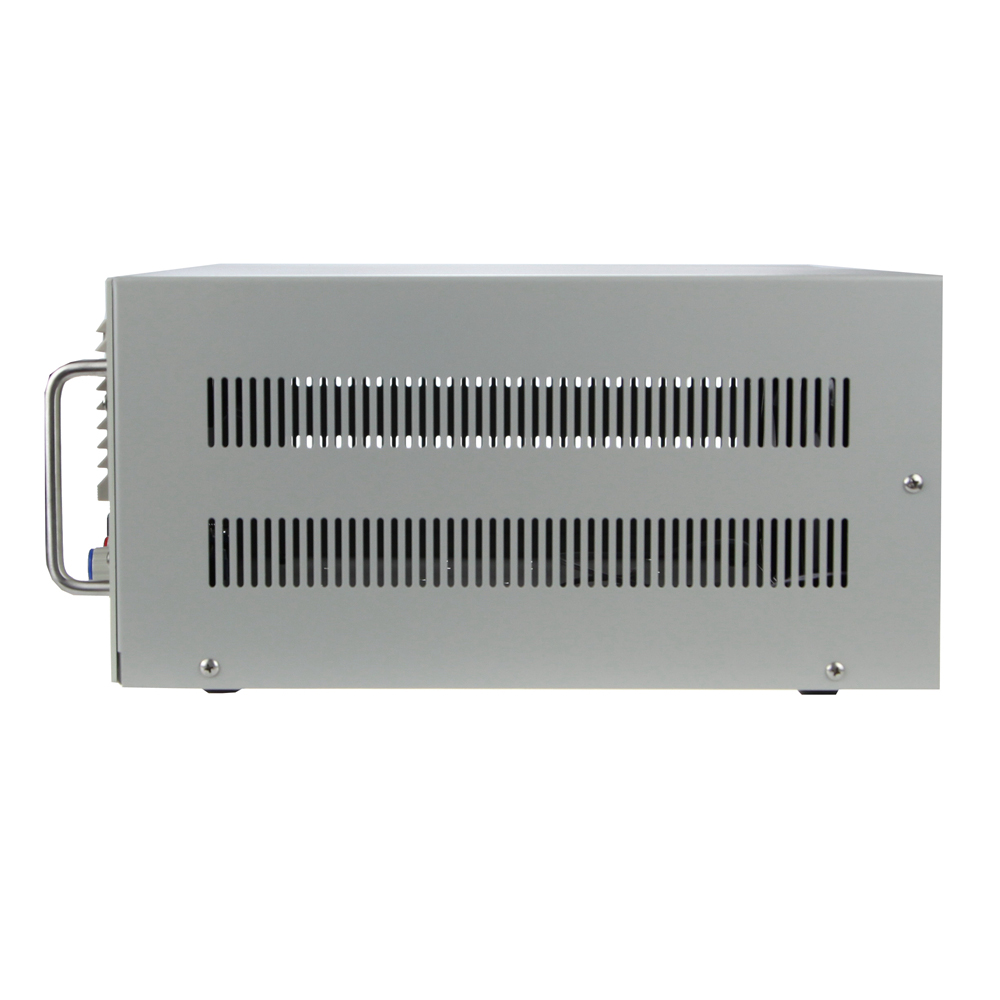

SMP 5000 Series Rack DC Power Supply

Power range: 900 ~ 6KW
Voltage range: 6 ~ 800V
Current range: 4 ~ 300A
434*180*500 benchtop chassis
Precise voltage and current setting and measurement capabilities
OVP, OCP, OTP protections etc.
CE certified
Availability:
Quantity:
Inquire Add to Basket

Overview

The SMP5000 series of DC power supplies are designed with the highest power among high-frequency DC switching power supplies based on MOSFETs. Under a single-phase 220Vac input, the designed output power reaches 6KW, and the output voltage ranges from 10Vdc to 800Vdc with low ripple, high precision and high efficiency and high-power density electronic characteristics.


The SMP5000 series DC power supplies are a constant voltage and constant current adjustable DC power supply. The output voltage and output current of the power supplies can be adjusted separately through the knobs on the front panel. the independent LED voltage and current meters can display the output voltage and current value separately, and RS485, 0-10V analog quantity or 24V interlock loop can be added to realize system integration control and monitoring.


Thanks to the higher switching frequency MOSFET-based switching power supplies, the SMP5000 series of rack-mounted DC power supplies can be built in the smaller 9-inch standard rack-mounted chassis at the same power by using a smaller semiconductor devices and LC filter units, which make the power supplies suitable for rack-mounted DC test systems, new material heating aging system matching, fuse test system, etc.


Features

Max. Output power reaches 6000W.

CV / CC working modes, automatic switchable between two modes.

Voltage & Current continuously adjustable, 10-turn potentiometer setting.

Output voltage & current LED display.

Intelligent fan cooling, withstand continuous working.

Adaptability to continuous or dynamic loads.

Over heat & Over current protection.

434*185*500 benchtop housing.

Low ripple and noise.


Applications

Products burn-in test, such as DC motors, DC fans, vehicle DVD, vehicle AUDIO, resistors and capacitors etc.

LED, motors and DC fans test.

Accumulator charging.

Labs and universities.

Small electrolysis or electroplating system.

Other conditions need stable DC output


Optional functions

Analog control port via external 0 ~ 5V / 0 ~ 10V or 4mA ~ 20mA signal.

RS485 communication port

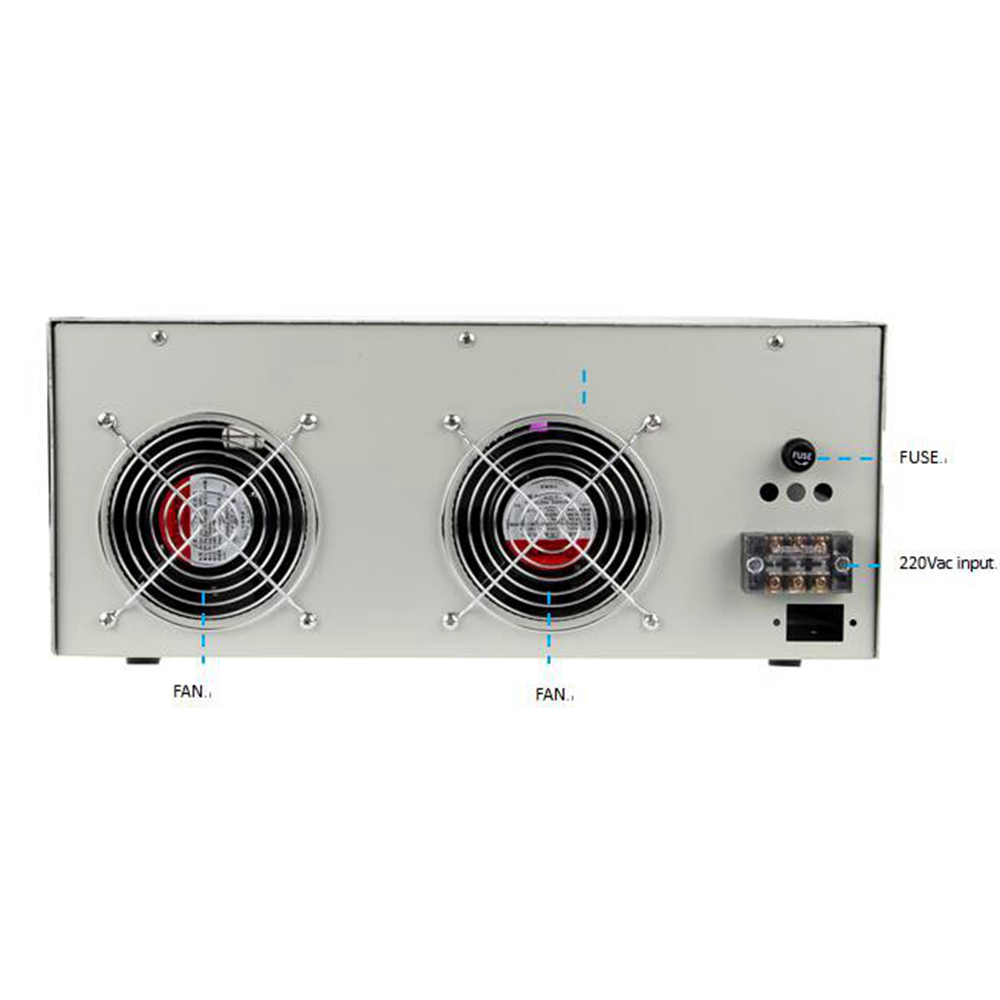

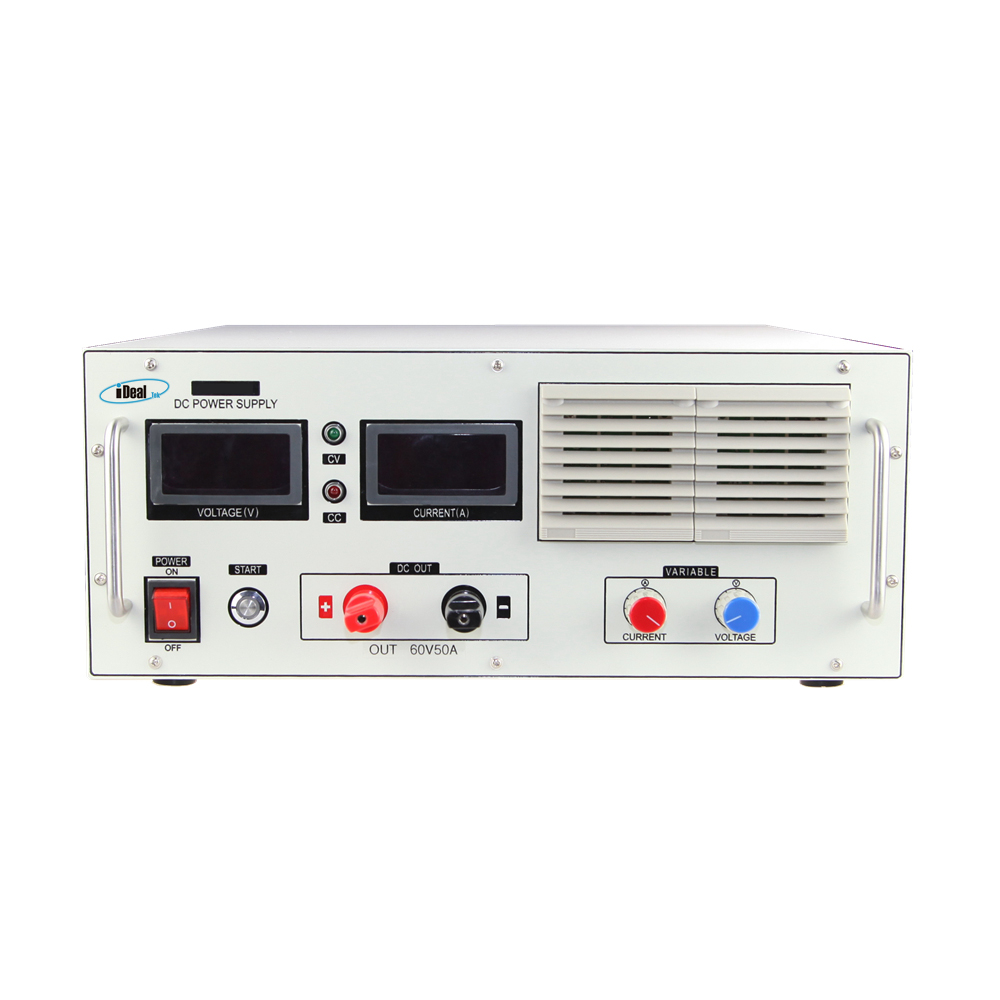

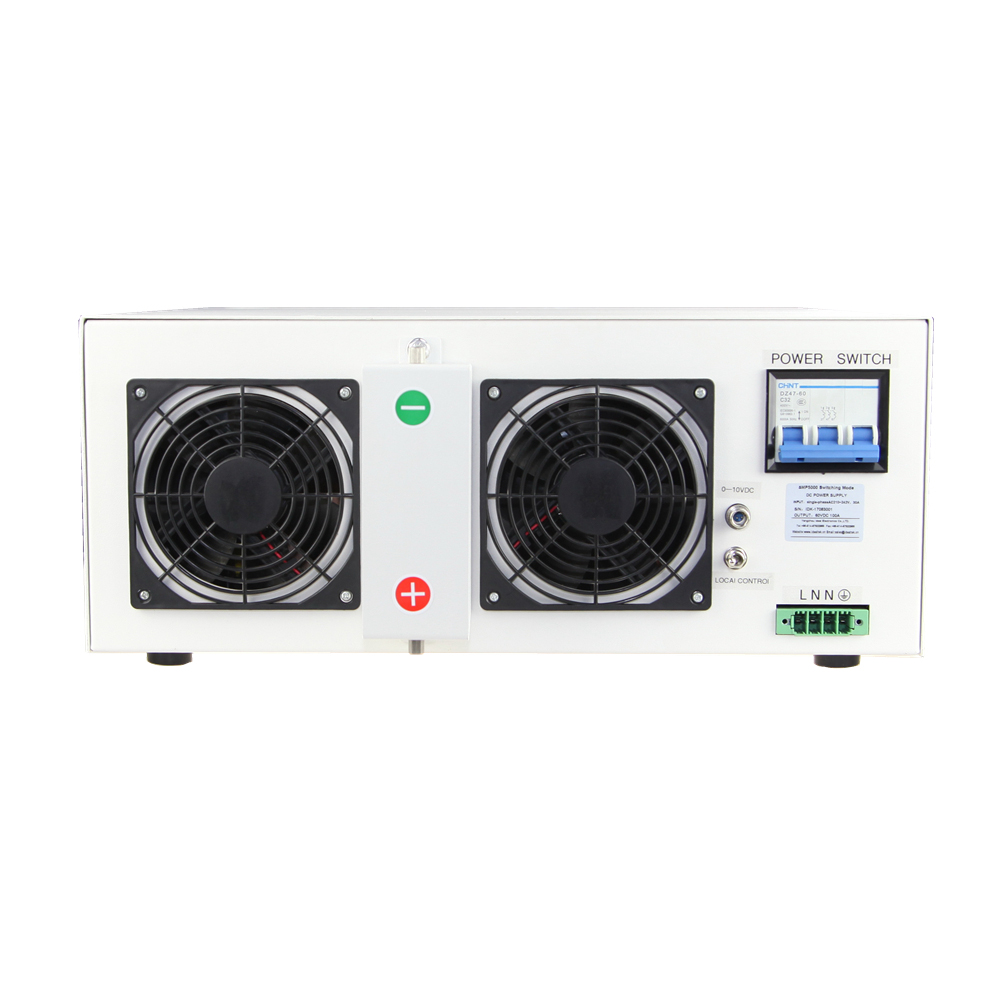

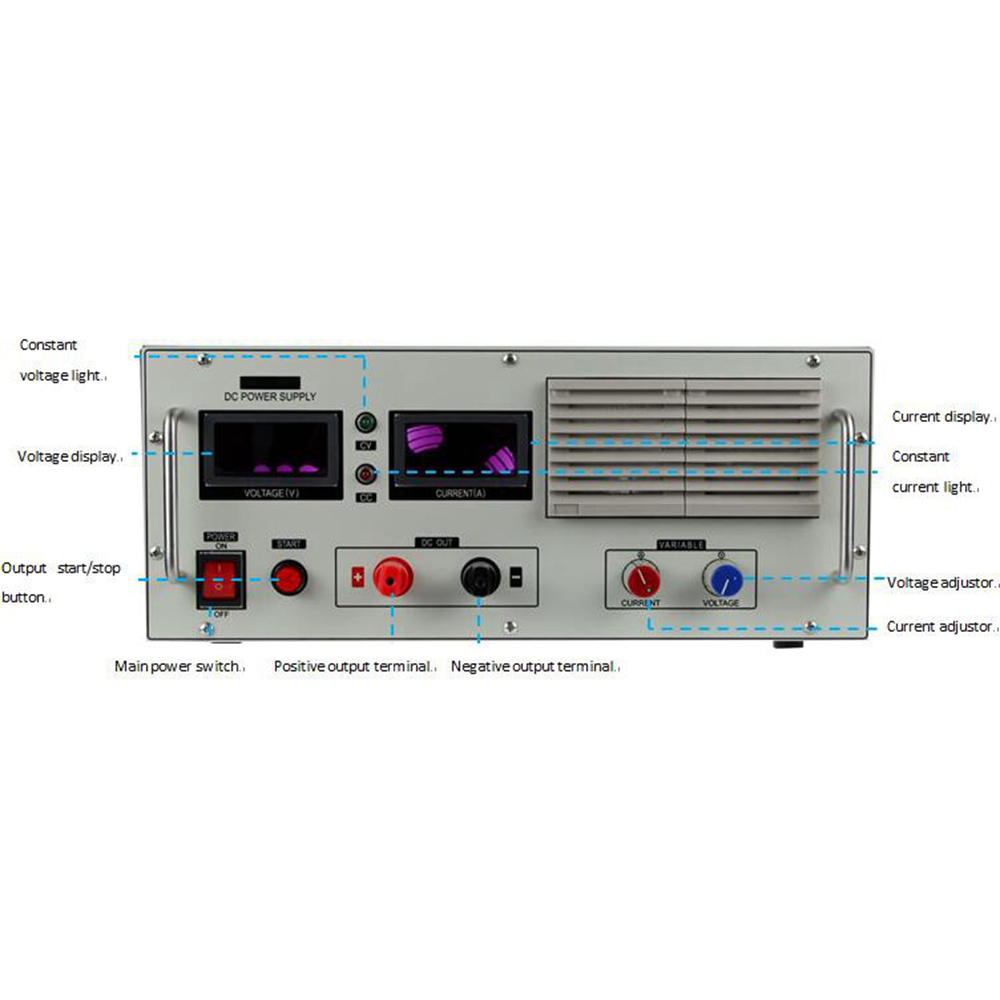

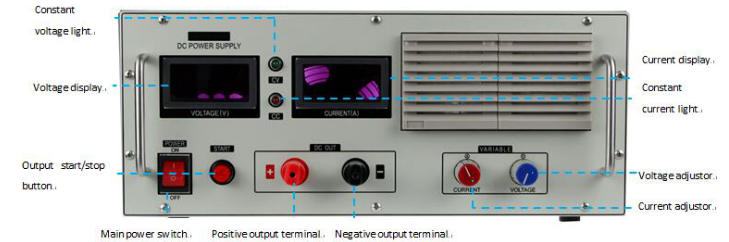

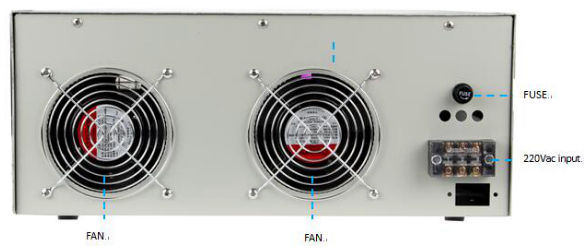

Front & Back Panel instruction




Specifications

Input

Voltage

Single – phase 220V±10%

Frequency

50Hz/60Hz

Output

Rated power

* kW

Output voltage

Adjusting range

0V ~ ***V


Line regulation

＜0.05%±20mV (Stability @ ±10% Δ UIN)


Load regulation

＜0.08%±20mV (Stability @ 10% ~ 90% load variance)


Ripple

500mV (RMS)


Response time

＜5mS (Regulation rate @ 10% ~ 100% load variance)

Output current

Adjusting range

0A ~ ***A


Line regulation

＜0.2% (Stability @ ±10% Δ UIN)


Load regulation

＜0.08% (Stability @ 0 ~ 100% Δ UOUT)


Ripple

500mA (RMS)

Setting & Display

Control mode

Front panel button control

Display mode

LED digital display

Protection & Monitoring functions

Output over current protection (OCP)

Power supply automatically CC working and alarms when the output has over current.

Over temperature protection (OTP)

Power supply automatically cuts off output and alarms when the internal temperature of the power supply exceeds 85 °C.



Noise

≤55dB

Protection degree

IP20

Cooling method

Forced air cooling

Working conditions

Ambient temperature

0℃～45℃

Humidity

10%～90%(non-condensing)

Height

≤2000m

Size (W*H*D) (mm)

434*180*500 (handle excluded)

Weight

Approx. 20 ~ 25Kg

Model list

Model

Output

Dimension (W*H*D) (mm)

Packing

SMP506A

6.0V

150.0A

434*180*500

Plywood case

SMP506B

200.0A

434*180*500

Plywood case

SMP506C

300.0A

434*180*500

Plywood case

SMP518A

18.0V

150.0A

434*180*500

Plywood case

SMP518B

200.0A

434*180*500

Plywood case

SMP518C

300.0A

434*180*500

Plywood case

SMP530A

30.0V

150.0A

434*180*500

Plywood case

SMP530B

200.0A

434*180*500

Plywood case

SMP536A

36.0V

100.0A

434*180*500

Plywood case

SMP536B

150.0A

434*180*500

Plywood case

SMP550A

50.0V

80.0A

434*180*500

Plywood case

SMP550B

100.0A

434*180*500

Plywood case

SMP560A

60.0V

80.0A

434*180*500

Plywood case

SMP560B

100.0A

434*180*500

Plywood case

SMP580A

80.0V

50.0A

434*180*500

Plywood case

SMP580B

80.0A

434*180*500

Plywood case

SMP5100A

100.0V

30.0A

434*180*500

Plywood case

SMP5100B

40.0A

434*180*500

Plywood case

SMP5100C

25.0A

434*180*500

Plywood case

SMP5120A

120.0V

50.0A

434*180*500

Plywood case

SMP5200A

200.0V

20.0A

434*180*500

Plywood case

SMP5200B

25.0A

434*180*500

Plywood case

SMP5250A

250.0V

10.0A

434*180*500

Plywood case

SMP5250B

15.0A

434*180*500

Plywood case

SMP5250C

20.0A

434*180*500

Plywood case

SMP5300A

300.0V

10.0A

434*180*500

Plywood case

SMP5300B

15.0A

434*180*500

Plywood case

SMP5400A

400.0V

10.0A

434*180*500

Plywood case

SMP5400B

15.0A

434*180*500

Plywood case

SMP5500A

500.0V

8.0A

434*180*500

Plywood case

SMP5500B

10.0A

434*180*500

Plywood case

SMP5600A

600.0V

5.0A

434*180*500

Plywood case

SMP5600B

8.0A

434*180*500

Plywood case

SMP5700A

700.0V

5.0A

434*180*500

Plywood case

SMP5700B

7.0A

434*180*500

Plywood case

SMP5800A

800.0V

4.0A

434*180*500

Plywood case

SMP5800B

6.0A

434*180*500

Plywood case

More models are coming soon.
