Introduction

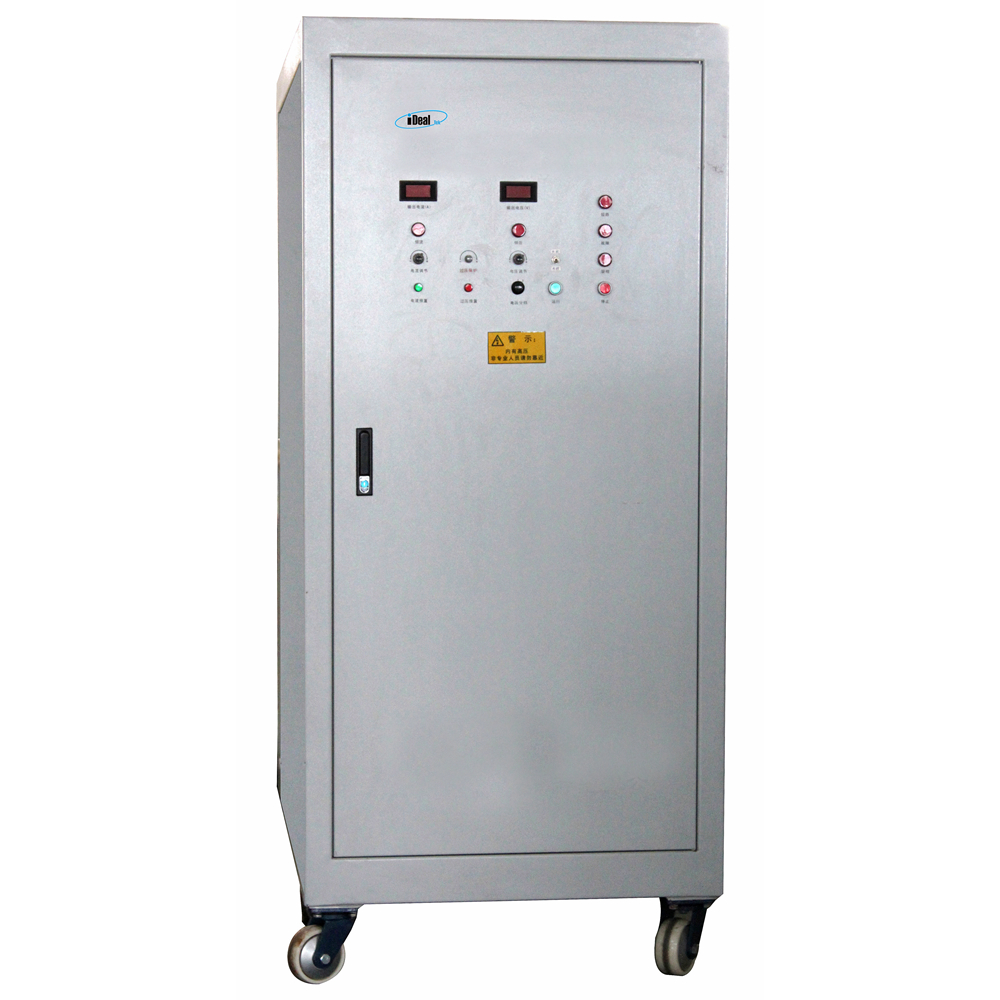

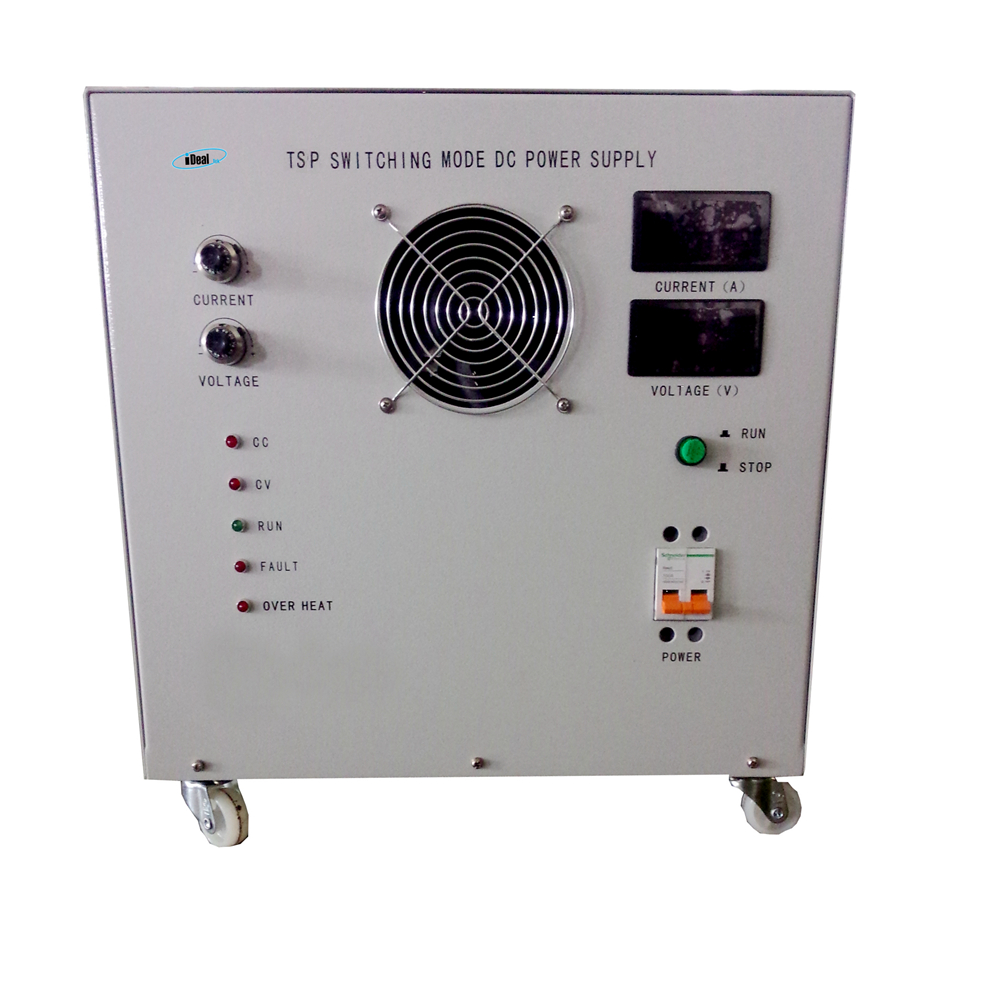

TSP series customized DC power supplies are built on the first generation of high-power DC power supply products structure, and is developed based on IGBT-based hard-switching technology. It has high output accuracy, low ripple, high efficiency, fast response speed performance with competitive cost.
All customized DC power supplies are all universal precision DC switching power supplies having constant voltage and constant current operation modes with automatic switching function.
All customized DC power supplies have over voltage, over heat and short circuit protection functions. In order to facilitate the matching of industry users, this power supply can also add customized functions, such as: automatic shutdown and load discharge function, over voltage, over current protection value preset and viewing function, pulse burn-in function, etc. to meet the power supply customization requirements by customers in different industries applications.
iDealTek's rich experience in DC power supply production and design can provide customers with ideal customized DC power supply solution in a short time, which can be widely used in factories, schools, research institutes, laboratories and various departments of the national economy.
Features
1.Over 200 models, output voltage: 0 ~ 2000V, output current: 0 ~ 3000A, output power: 4.5KW-50kW
2.Constant voltage mode and constant current mode, automatic switchable, output voltage / current continuously adjustable from 0 to rated value.
3.Over voltage protection: Over voltage value continuously adjustable from 0 to 110% rated value, auto-shut down when output voltage exceeds the over voltage set point
4.Over current protection: over current protection value continuously adjustable within rated value range, sound & light alarm when output current exceeds set value.
5.Short protection: Withstand short-circuit under start-up or any working modes, sound & light alarm when output has short.
6.Over load protection: Auto-tripping when power supply or load has fault and output current exceeds 1.5 times of rated value
7.Short alarm: sound & light alarm when output voltage lower than 1% of rated value and current higher 110% of rated value. (optional)
8.Automatic off-load and discharging: when power supply shutdown, power supply will automatically cut off load and discharge electric in load for safety. (optional)
9.Output display: Voltage & current both LED digital display (standard), LCD display (optional) or LCD touch screen display (optional)
10.Pulsing working: could add time controller to be pulsing power supply (optional)
11.Communication port: RS232/RS485 for connection with computer to be remote controlled & monitored by computers (optional)
12.Analog signal: 0 ~ 5V (10V) or 4 ~ 20mA analog signal for output voltage & current control (optional)
Application
1.Electrolysis capacitor burn-in, tantalum capacitor energizing.
2.DC motor test, burn-in, EV motor test, burn-in.
3.Resistor, relay, motor, transistor and other electronic components burn-in and routine test.
4.Lab, electronic device and automatic test equipment
5.Electronic test device, production line equipment, communication equipment.
6.Electrolysis, electroplating, electrochemical equipment.
Technical Specification
Electrical Characteristics | ||
1. Input,Output | Input: Single-phase 220Vac±10%, 50Hz±10% Three-phase 380Vac±10%, 50Hz±10% Output:DC C.C. and/or C.V. Max output: as requirements | |
2. Accuracy (C.V.) | Line regulation: ≤0.1% Of the rated value ± 1 digit (output voltage change ratio under input ±10% change) Stability: ≤0.3% of the rated value (output voltage change ratio due to 8 hours continuously working) Temp. coeff.offset: (within 30mins) ≤0.4‰/℃ of the rated value ± 2 digits (output voltage change ratio due to environment temperature changes) Load regulation (load 0 ~ 100%): ≤0.3% of the rated value ± 1 digit (output voltage change ratio due to output current change from 0 to rated value) | |
3. Accuracy (C.C.) | Line regulation: ≤0.1% Of the rated value ± 1 digit (output current change ratio under input ±10% change) Stability: ≤0.3% of the rated value (output current change ratio due to 8 hours continuously working) Temp. coeff.offset: (within 30mins) ≤0.4‰/℃ of the rated value ± 2 digits (output current change ratio due to environment temperature changes) Load regulation (load 0 ~ 100%): ≤0.3% of the rated value ± 1 digit (output current change ratio due to output voltage change from 0 to rated value) | |
4. Ripple +noise(r.m.s) | CV: ≤0.3% of the rated value+10mV (80% ~ 100% rated output) CC: ≤0.5% of the rated value+10mA (80% ~ 100% rated output) | |
5. Ripple +noise(p-p) | ≤2% of the rated value+500mV (80% ~ 100% rated output) | |
6. Efficiency | ≥80% | |
7. Programming Output voltage | Adjustable (0 ~ rated value) or CV | |
8. Programming output current | Adjustable (0 ~ rated value) or CC | |
9. Adjusting mode | 10-turn Potentiometer Key button (optional) | |
10. Protections function | Output will be cut down when over voltage / over current / over Temp. / lack phase (three-phase input) | |
11. Short protection | Auto CC working when short connected, please add short protection if load could not bear long-term short. | |
12. Working mode | Withstand long-term continuous working at full load. | |
13. Read output | Digital LED LCD (optional) | |
14. Display precision | As per output values | |
15. Transient response time | ≤20ms | |
16. Display accuracy | ≤±1%±1digit (range:5%~100% of the rated value) | |
17. Load characteristic | On demand | |
18. Operating condition | Location: indoor use only Temperature: -20°C ~ +40°C Humidity: ≤80% | |
19. Spare parts | Company standard (fuse*1 set, operation CD*1pc) | |
● Input Voltage: Power source voltage can be changed to others on request.
● Custom-made specifications are on request.
